Whyte Bikes

Whyte e-504 V1 Electric Mountain Bike

£3,599.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Returns

In the unlikely event that you are dissatisfied with your purchase please feel free to return your goods within 30 days of the purchase date for a full exchange or refund. Any item (excluding food and underwear) can be returned to us for any reason provided it is returned in ‘showroom condition’, with its original packaging, tags and a valid receipt/delivery note.

It is your responsibility to ensure that the item is returned to us in a safe and secure manner, and in the event of a refund or exchange, in saleable condition (in original packaging and including all warranty, cards, manuals and accessories).

Customers are accountable for return shipping charges.

If you purchased an item in one of our stores, you may return the items to either of our stores.

Return Items by Post

  1. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.
  2. Send your package using a recorded delivery method (always keep a copy of your receipt!) to the following address.
South Downs Bikes
Internet Department
28 West Street
Storrington
West Sussex
RH20 4EE

If you wish to return your bike to us please keep it in the box it arrived in and contact us and we will arrange a collection.

Please note the following:

  • a) If we have sent you the incorrect bicycle, we will cover the cost of collection and delivery of the correct model.
  • b) If we have delivered the bicycle you ordered, but upon inspection you decide it is not the bike for you, we will charge you £50.00 for the collection.

Please do not ride the bike as a full refund cannot be given if the bike has been used or damaged.

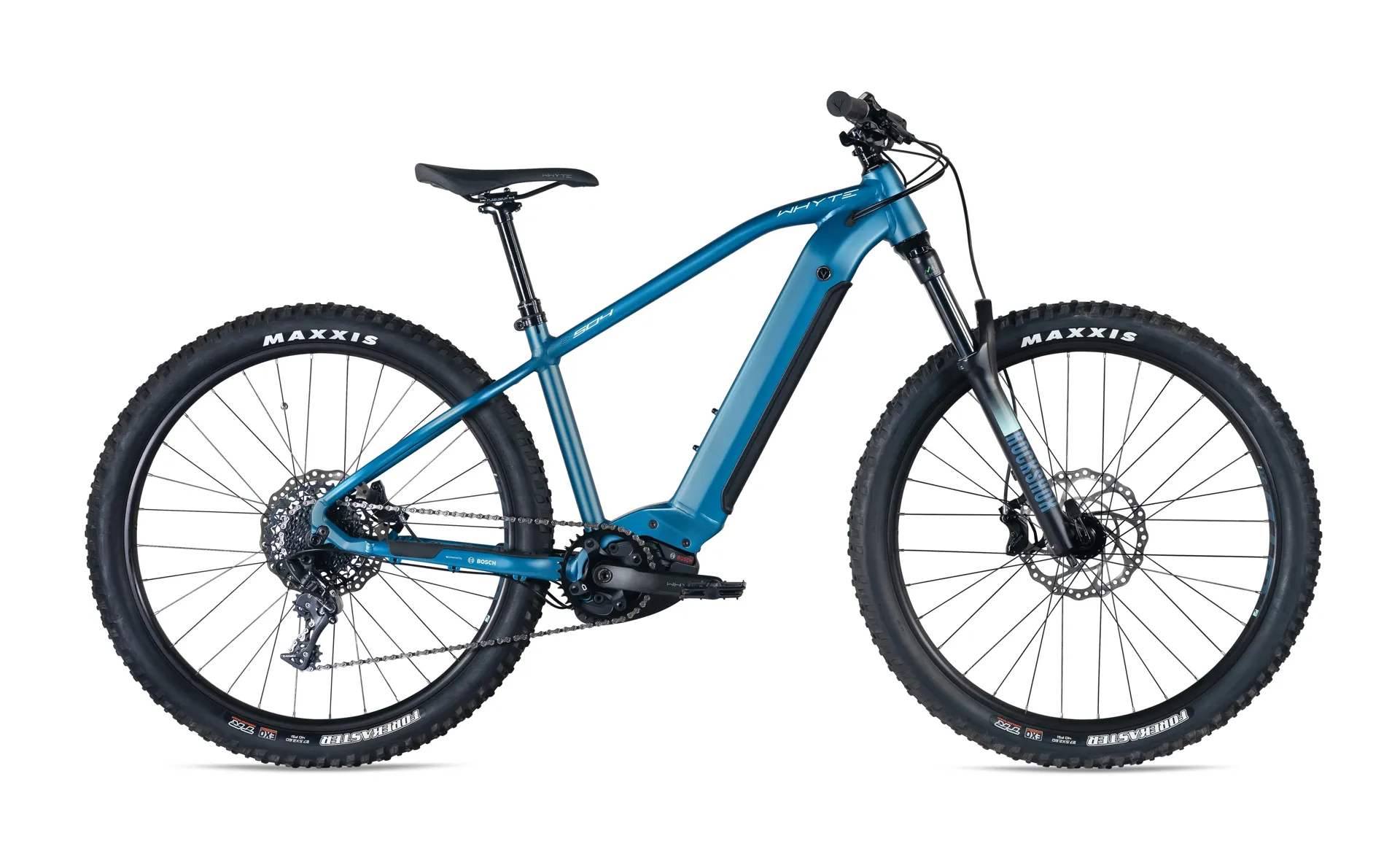

Whyte e-504 V1 Electric Mountain Bike

Season:2022

Brand:Whyte Bikes

Code:WE504

Our e-500 bikes are the first hardtails to combine the exceptional handling benefits of Whyte geometry with a complete eSystem from Bosch for the unbeatable combination of ride performance and reliability.

Bosch's class-leading Gen 4 Performance Line CX Drive Unit has all the power you'll need on tap. With a whopping 85Nm of torque you'll be conquering climbs that many others can only push up.

Puncture resistant 2.6" tubeless tyres add reliability, comfort and maximum grip to your ride, whilst powerful 4 piston brakes mean proper stopping power on demand.
Technical Information
FRAME6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts
FORKRockShox 35 Gold RL 27.5", 120mm Travel, 37mm Offset, DebonAir, Fast Black Coating, Adjustable Compression and Rebound, Tapered Steerer, 110mm x 15mm Boost, Maxle Lite
REAR SHOCKN/A
HEADSETFSA No. 57B Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Caged Bearings
REAR HUBAlloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole
FRONT HUBAlloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
SPOKESDT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
RIMSWTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
TYRESMaxxis Forekaster TR 27.5" x 2.6" 60TPI, EXO Sidewall Protection
SHIFT LEVERSSRAM GX, 11 Speed
FRONT DERAILLEURN/A
REAR DERAILLEURSRAM GX, 11 Speed
CASSETTESRAM PG-1130, 11-42, 11 Speed
CHAINKMC NPBK Sport, 11 Speed
CRANKSETWhyte, Steel narrow/wide, 165mm, Direct Mount 36T for Bosch Performance Line CX, Black
BOTTOM BRACKETN/A
SEATPOSTWhyte drop.it, 30.9, XS 100mm, S 125mm, M 150mm Travel, Paddle Remote Lever
SEATWhyte Custom, Triple Panel Design
BARWhyte 6061 Alloy, XS and S 15mm Rise, 31.8mm, 760mm, M 30mm Rise, 31.8mm, 780mm Wide
STEMWhyte Alloy 6061, 35mm Extension
GRIPSWhyte Lock-on V Grip
FRONT BRAKESTektro Orion, 4-Piston with Sintered Metal Pads, 200mm Disc, Post Mount
REAR BRAKESTektro Orion, 4-Piston with Sintered Metal Pads, 200mm Disc, Post Mount, Internal Routing
BRAKE LEVERSTektro Orion
PEDALSNone

Drive UnitPerformance CX 85Nm
Battery500Wh
Battery Charger2 Amp
DisplayPurion
Sizing Information
Extra SmallSmallMedium
HEAD TUBE ANGLE6464.564.5
SEAT TUBE ANGLE74.574.574.5
TOP TUBE HORIZONTAL569590620
BB HEIGHT ABOVE GROUND305305305
STANDOVER HEIGHT712728758
WHEELBASE114611631193
CHAINSTAY LENGTH440440440
SEATPOST DIAMETER30.930.930.9
HEAD TUBE LENGTH107115115
SEAT TUBE LENGTH BBC2T381406444
STACK600610610
REACH403421450
