Whyte Bikes

Whyte e-180 S V3 Electric Mountain Bike

£6,399.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Returns

In the unlikely event that you are dissatisfied with your purchase please feel free to return your goods within 30 days of the purchase date for a full exchange or refund. Any item (excluding food and underwear) can be returned to us for any reason provided it is returned in ‘showroom condition’, with its original packaging, tags and a valid receipt/delivery note.

It is your responsibility to ensure that the item is returned to us in a safe and secure manner, and in the event of a refund or exchange, in saleable condition (in original packaging and including all warranty, cards, manuals and accessories).

Customers are accountable for return shipping charges.

If you purchased an item in one of our stores, you may return the items to either of our stores.

Return Items by Post

  1. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.
  2. Send your package using a recorded delivery method (always keep a copy of your receipt!) to the following address.
South Downs Bikes
Internet Department
28 West Street
Storrington
West Sussex
RH20 4EE

If you wish to return your bike to us please keep it in the box it arrived in and contact us and we will arrange a collection.

Please note the following:

  • a) If we have sent you the incorrect bicycle, we will cover the cost of collection and delivery of the correct model.
  • b) If we have delivered the bicycle you ordered, but upon inspection you decide it is not the bike for you, we will charge you £50.00 for the collection.

Please do not ride the bike as a full refund cannot be given if the bike has been used or damaged.

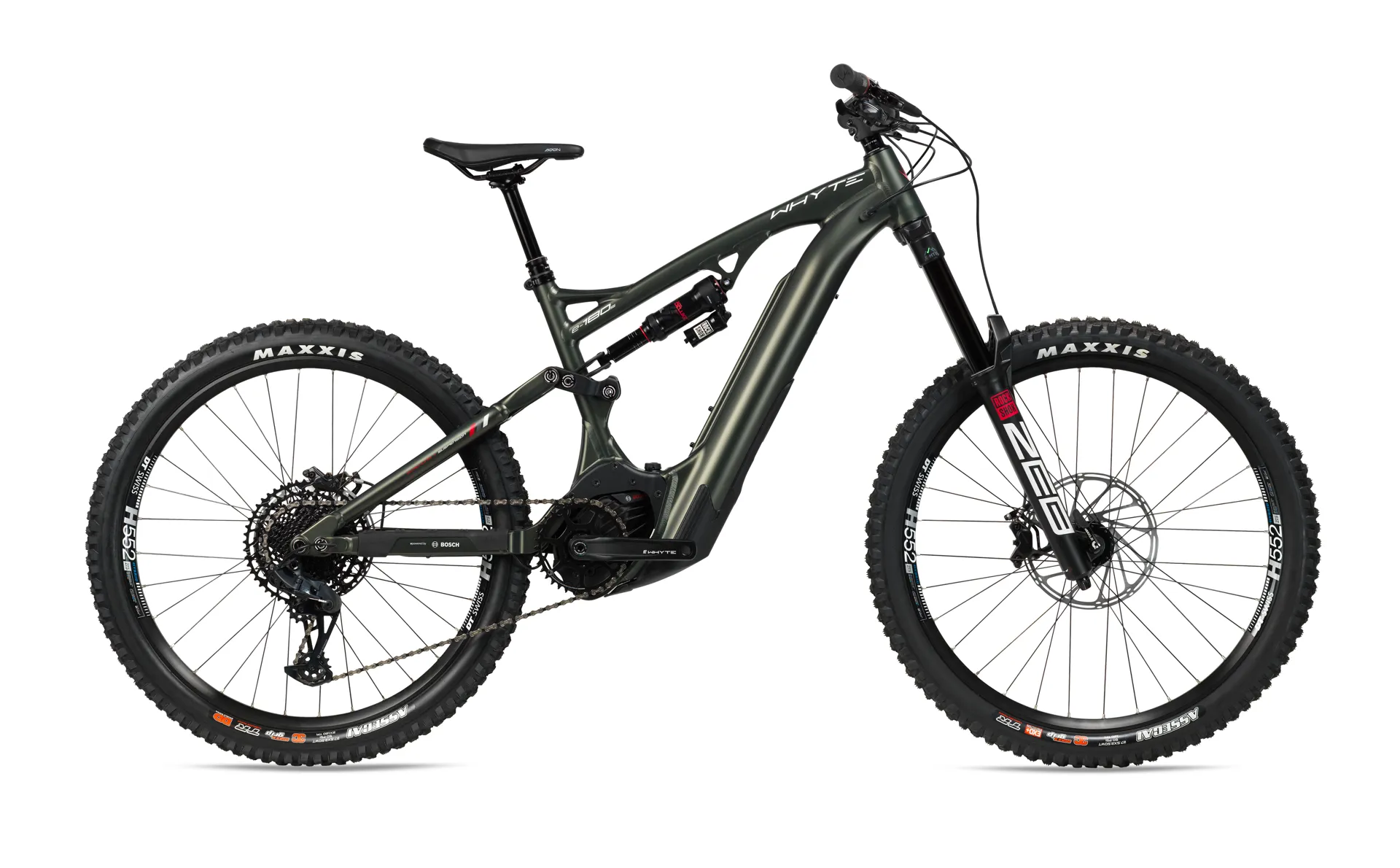

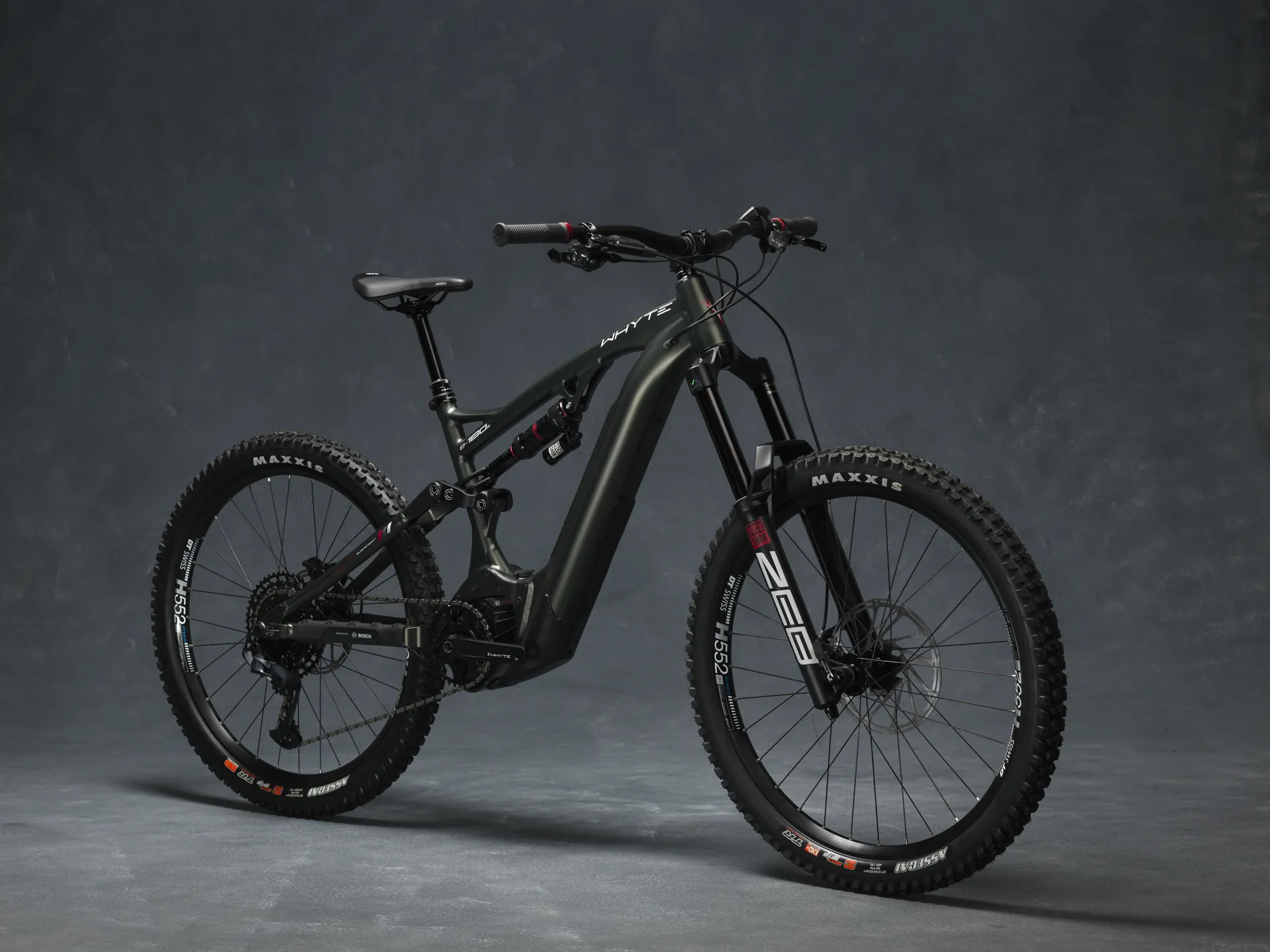

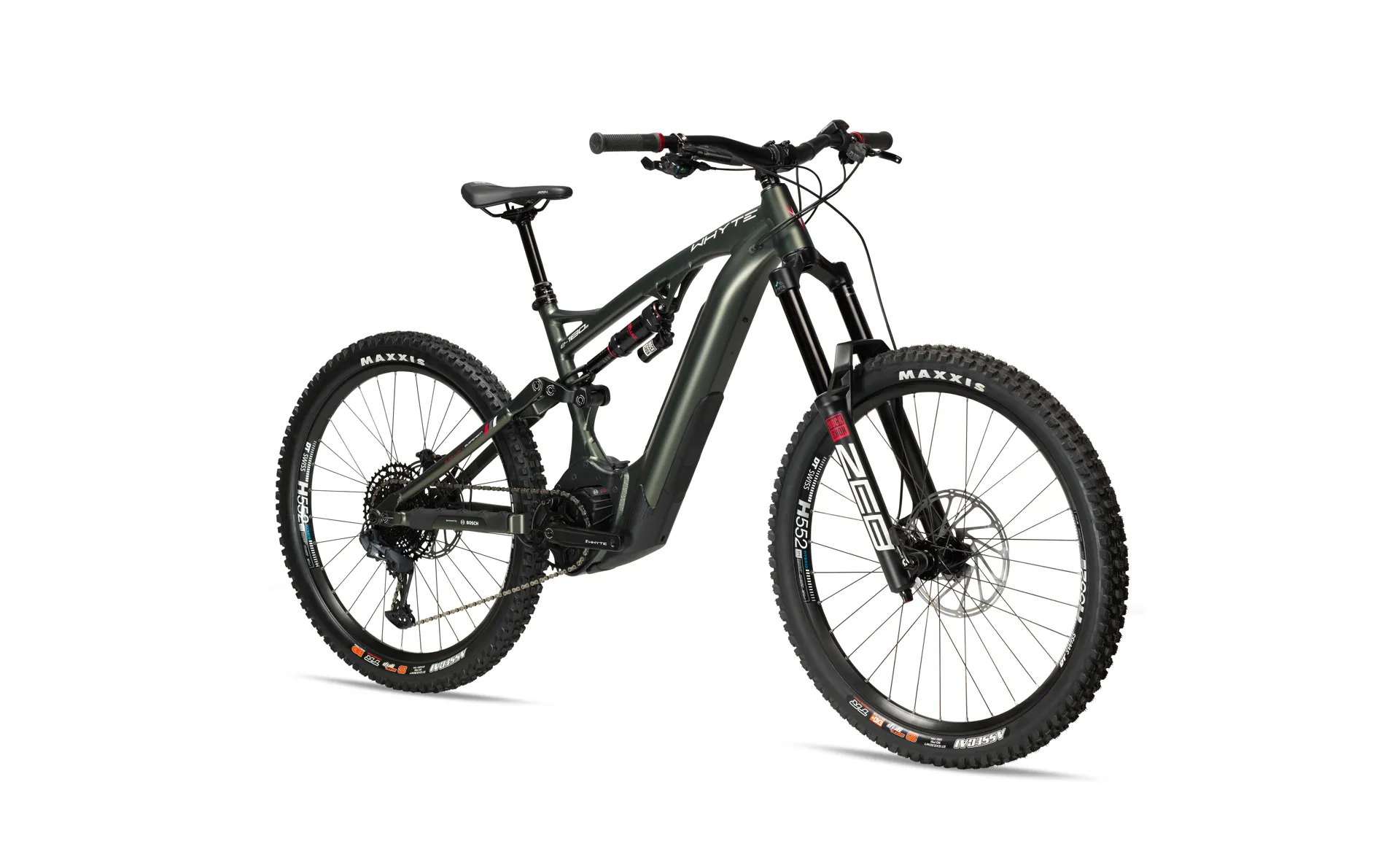

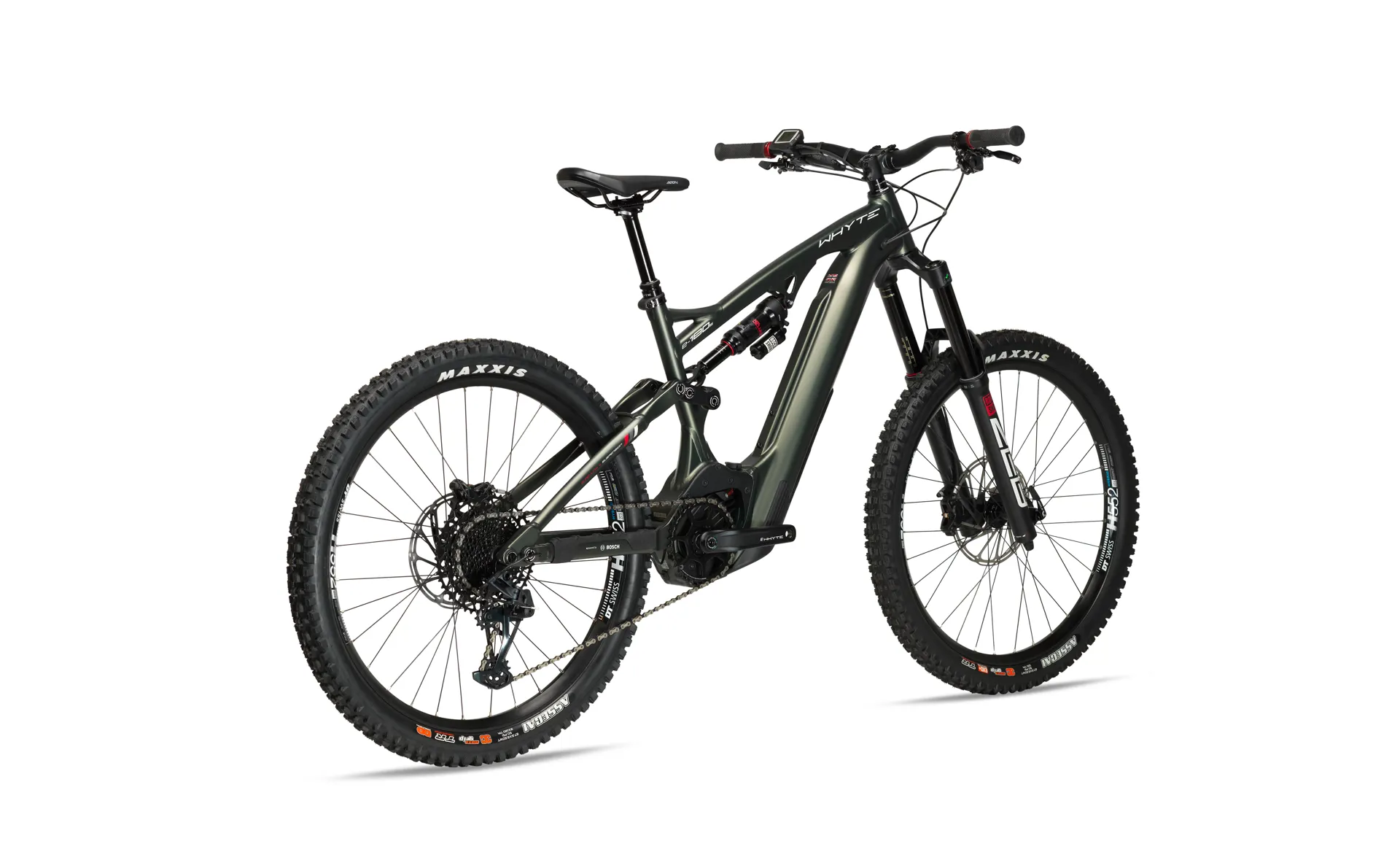

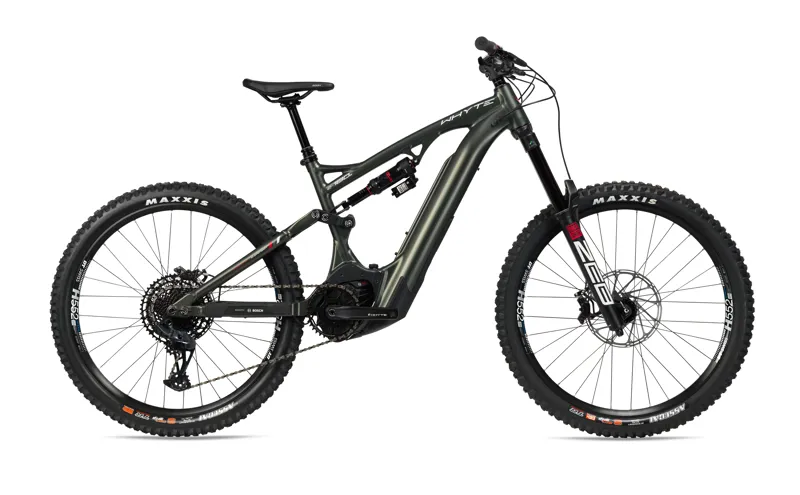

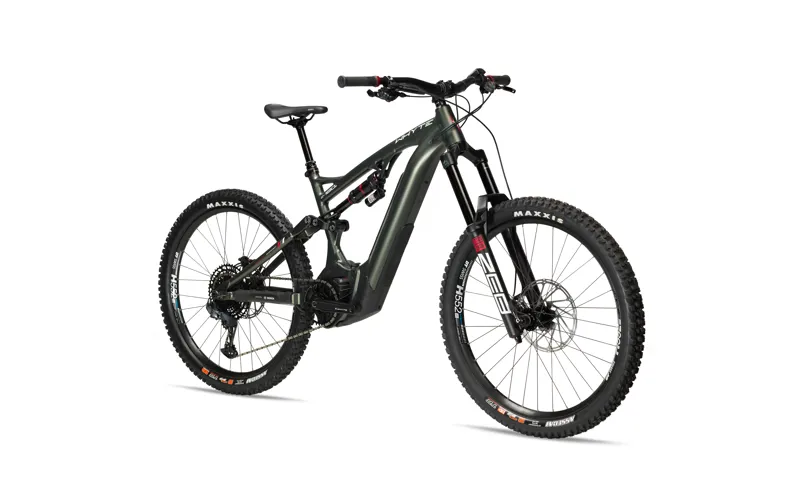

Whyte e-180 S V3 Electric Mountain Bike

Season:2022

Brand:Whyte Bikes

Code:WE180S

Full-gas fun, built for the toughest trails. The E-180 S combines RockShox ZEB fork with a Super Deluxe rear shock and powerful Code R brakes.

Uncompromised Whyte OTO geometry combined with an ultra-low centre of gravity means outstanding handling, balance and control. A complete eSystem from Bosch means reliability and unbeatable backup. Our "slide in" battery fitment means maximum structural integrity for minimum weight and torsional rigidity.

The high-torque 85Nm Bosch Performance Line CX motor is super-compact with exceptionally smooth power delivery which simulates normal pedalling, and range anxiety shouldn’t be an issue as we fit a powerful 625Wh battery as standard.
Technical Information
FRAME6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing, Shape.it Link and 12mm X 148mm Boost Dropouts
FORKRockShox ZEB 27.5", 180mm Travel, 44mm Offset, DebonAir, Charger R Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate
REAR SHOCKRockShox Super Deluxe Select, DebonAir, Fast Black Coating, Adjustable Rebound
HEADSETFSA No. 57E Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
REAR HUBAlloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 9 deg Micro Engagement 4 Pawl, 32 Hole
FRONT HUBAlloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
SPOKESDT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
RIMSDT Swiss Hybrid 30, Sleeved Joint, 32 Hole
TYRESMaxxis Assigai WT, TR, 27.5" x 2.5" 120TPI, EXO + Sidewall Protection, 3C Maxx Terra, Dual Compound, Folding Bead, Front, Maxxis Assigai WT, TR, 27.5" x 2.5" 120TPI, Double Down Casing, 3C Maxx Terra, Dual Compound, Rear
SHIFT LEVERSSRAM GX-E, Eagle, Single Click, MMX, 12 Speed
FRONT DERAILLEURN/A
REAR DERAILLEURSRAM GX Eagle, 12 Speed
CASSETTESRAM PG-1210 Eagle, 11-50, 12 Speed
CHAINSRAM GX Eagle, 12 Speed
CRANKSETWhyte, forged alloy, 165mm, X-SYNC 2, Direct Mount 36T for Bosch Performance Line CX, Black
BOTTOM BRACKETN/A
SEATPOSTWhyte drop.it II Adjust, 30.9mm, M/L 140-170mm Travel, XL 170-200mm Travel, MMX Paddle Remote Lever
SEATFizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
BARWhyte Custom 6061 Alloy, 30mm Rise, 35mm Bar Bore, 800mm Wide
STEMWhyte Enduro Stem, 35mm Bar Bore, 35mm Extension
GRIPSWhyte Lock-on Enduro Grip
FRONT BRAKESSRAM Code R, 4 Piston with Sintered Metal Pads, 220mm Disc
REAR BRAKESSRAM Code R, 4 Piston with Sintered Metal Pads, 200mm Disc
BRAKE LEVERSSRAM Code R, MMX
PEDALSNone
SHOCK STROKE AND SAG SETTING65mm, Sag 16mm (25%) to 19mm (30%)
REDUCER BUSH WIDTHS25mm x 8mm, no hardware at the rear
EYE TO EYE LENGTH230mm
DRIVE UNITPerformance CX 85Nm
BATTERY625Wh
BATTERY CHARGER4 Amp
DISPLAYPurion
Sizing Information
MediumLargeExtra Large
HEAD TUBE ANGLE64.6 (64.0)64.6 (64.0)64.6 (64.0)
SEAT TUBE ANGLE75.575.375.1
TOP TUBE HORIZONTAL605633663
BB HEIGHT ABOVE GROUND344 (336)344 (336)344 (336)
STANDOVER HEIGHT841841841
WHEELBASE124112701302
CHAINSTAY LENGTH444444444
SEATPOST DIAMETER30.930.930.9
HEAD TUBE LENGTH120130145
SEAT TUBE LENGTH BBC2T431.8457.2482.5
STACK626.3635.2648.7
REACH455480505
