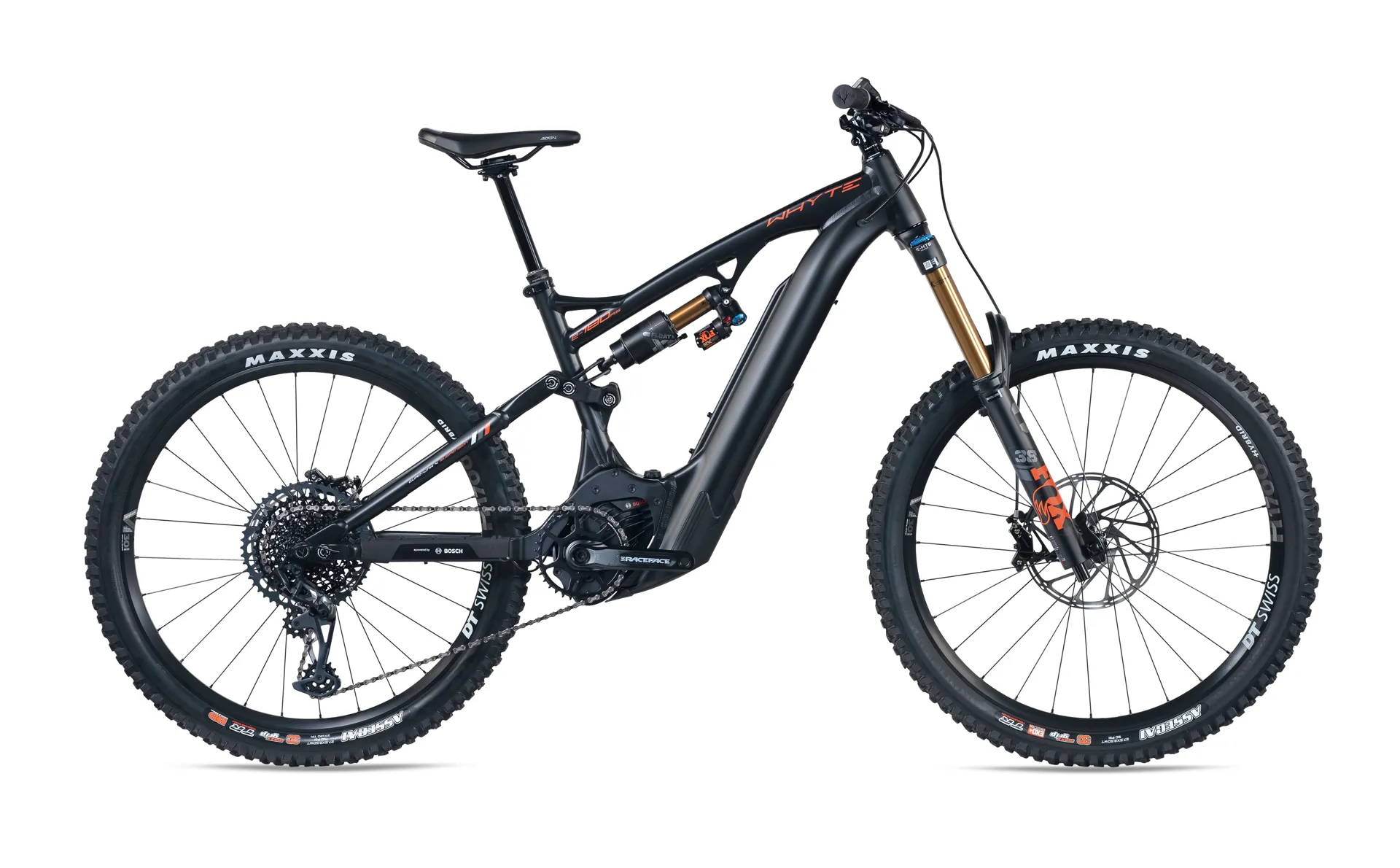

Whyte e-180 RS V3 Electric Mountain Bike

Season:2022

Brand:Whyte Bikes

Code:WE180RS

The E-180 RS is an exceptionally fun, fast and capable 180mm travel Enduro-focused mountain bike. Fox Factory Suspension and Code brakes make a fantastic MTB package able to get you down the toughest trails in record time - and the motor helps you power back to the top, to do it all again and again.

Uncompromised Whyte OTO geometry combined with an ultra-low centre of gravity means outstanding handling, balance and control. A complete eSystem from Bosch means reliability and unbeatable backup. Our "slide in" battery fitment means maximum structural integrity for minimum weight and torsional rigidity.

The high-torque 85Nm Bosch Performance Line CX motor is super-compact with exceptionally smooth power delivery which simulates normal pedalling, and range anxiety shouldn’t be an issue as we fit a powerful 625Wh battery as standard.
Technical Information
FRAME6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing, Shape.it Link and 12mm X 148mm Boost Dropouts
FORKFox Float 38, Factory 27.5", 180mm Travel, 44mm Offset with Grip 2 Damper and custom tune, Tapered Steerer, Kashima Coating, 110mm x 15mm Boost, E-Thru Axle
REAR SHOCKFox Float X2, Factory, independently adjustable Compression and Rebound damping, Kashima coating
HEADSETFSA No. 57E Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
REAR HUBDT Swiss 350 Straightpull with 24T Ratchet System, 12mm x 148mm, 6 Bolt with Magnet carrier, 28 Hole
FRONT HUBDT Swiss 350, 15mm x 110mm, Centre-Lock, 28 Hole
SPOKESDT Swiss Hybrid triple butted 2.34mm/1.8mm/2.0mm, Black Stainless, DT Pro Lock Squorx Nipples
RIMSDT Swiss Hybrid 30, Sleeved Joint, 28 Hole
TYRESMaxxis Assigai WT, TR, 27.5" x 2.5" 120TPI, EXO + Sidewall Protection, 3C Maxx Terra, Dual Compound, Folding Bead, Front, Maxxis Assigai WT, TR, 27.5" x 2.5" 120TPI, Double Down Casing, 3C Maxx Terra, Dual Compound, Rear
SHIFT LEVERSSRAM X01-E Eagle, Single Click, MMX, 12 Speed
FRONT DERAILLEURN/A
REAR DERAILLEURSRAM X01 Eagle, 12 Speed
CASSETTESRAM XG-1275 Eagle, 10-52, 12 Speed
CHAINSRAM GX Eagle, 12 Speed
CRANKSETRace Face Affect E-Bike, 165mm, ISIS with X-SYNC Direct Mount 36T for Bosch Performance Line CX, Black
BOTTOM BRACKETN/A
SEATPOSTCrank Bro High-Line 3, 30.9mm, M/L 150mm Travel, XL 170mm Travel, High-Line Ball Socket Remote Lever
SEATFizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
BARRace Face Turbine R, 35mm Rise, 35mm Bar Bore, 800mm Wide
STEMRace Face Atlas, 35mm Bar Bore, 35mm Extension
GRIPSWhyte Lock-on Enduro Grip
FRONT BRAKESSRAM Code RSC, 4 Piston with Sintered Metal Pads, 220mm Disc
REAR BRAKESSRAM Code RSC, 4 Piston with Sintered Metal Pads, 200mm Disc
BRAKE LEVERSSRAM Code RSC, MMX
PEDALSNone
SHOCK STROKE AND SAG SETTING65mm, Sag 16mm (25%) to 19mm (30%)
REDUCER BUSH WIDTHS25mm x 8mm, no hardware at the rear
EYE TO EYE LENGTH230mm
DRIVE UNITPerformance CX 85Nm
BATTERY625Wh
BATTERY CHARGER4 Amp
DISPLAYPurion
Sizing Information
MediumLargeExtra Large
HEAD TUBE ANGLE64.6 (64.0)64.6 (64.0)64.6 (64.0)
SEAT TUBE ANGLE75.575.375.1
TOP TUBE HORIZONTAL605633663
BB HEIGHT ABOVE GROUND344 (336)344 (336)344 (336)
STANDOVER HEIGHT841841841
WHEELBASE124112701302
CHAINSTAY LENGTH444444444
SEATPOST DIAMETER30.930.930.9
HEAD TUBE LENGTH120130145
SEAT TUBE LENGTH BBC2T431.8457.2482.5
STACK626.3635.2648.7
REACH455480505
