Frame
C:68X® Monocoque Advanced Twin Mold Technology, Effiecient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing
-
Available Sizes
S, M, L, XL
-

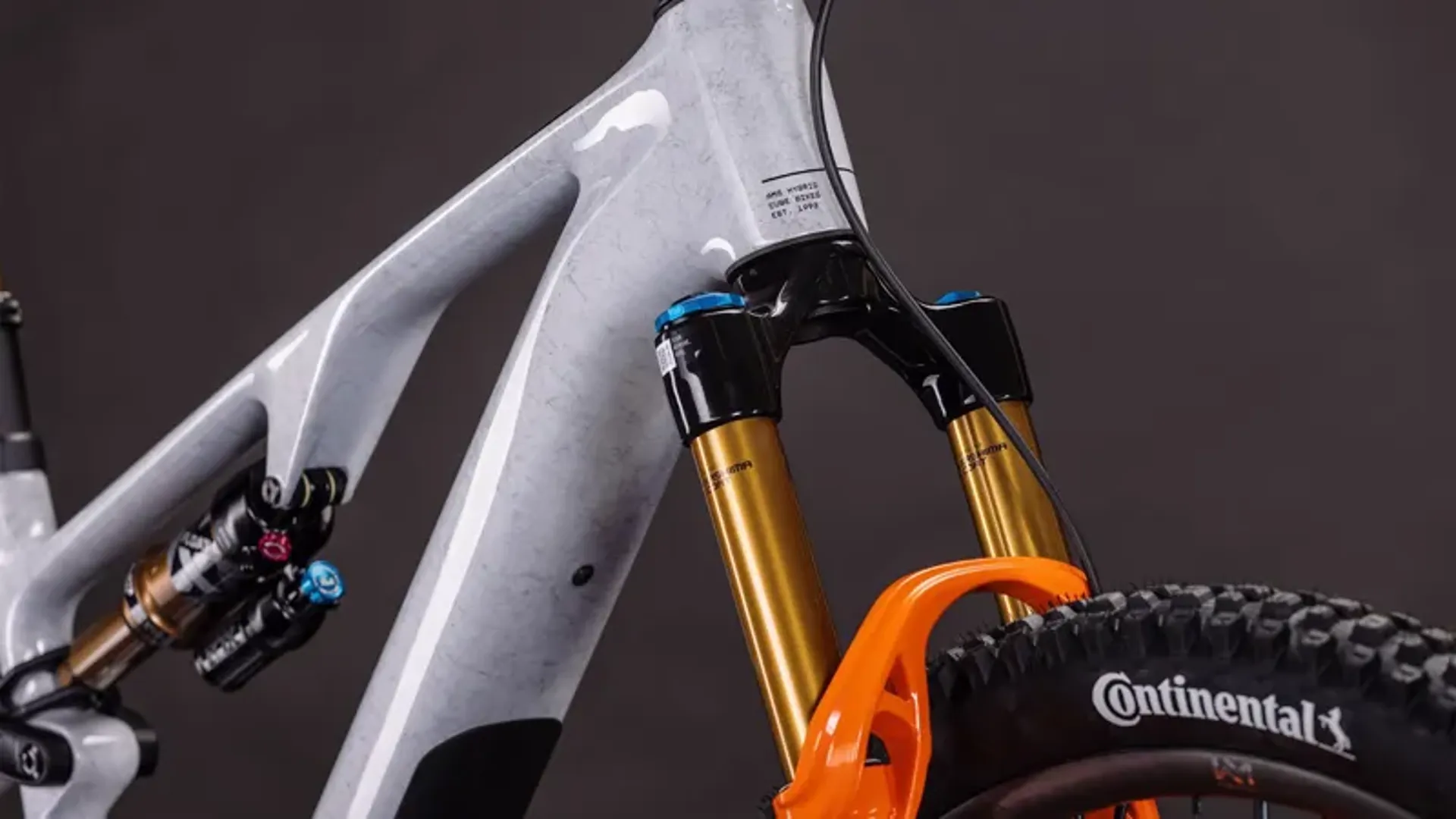

Suspension fork
Fox 36 Float Factory GRIPX2, Tapered, 15x110mm, 140mm, Kashima Coated
-

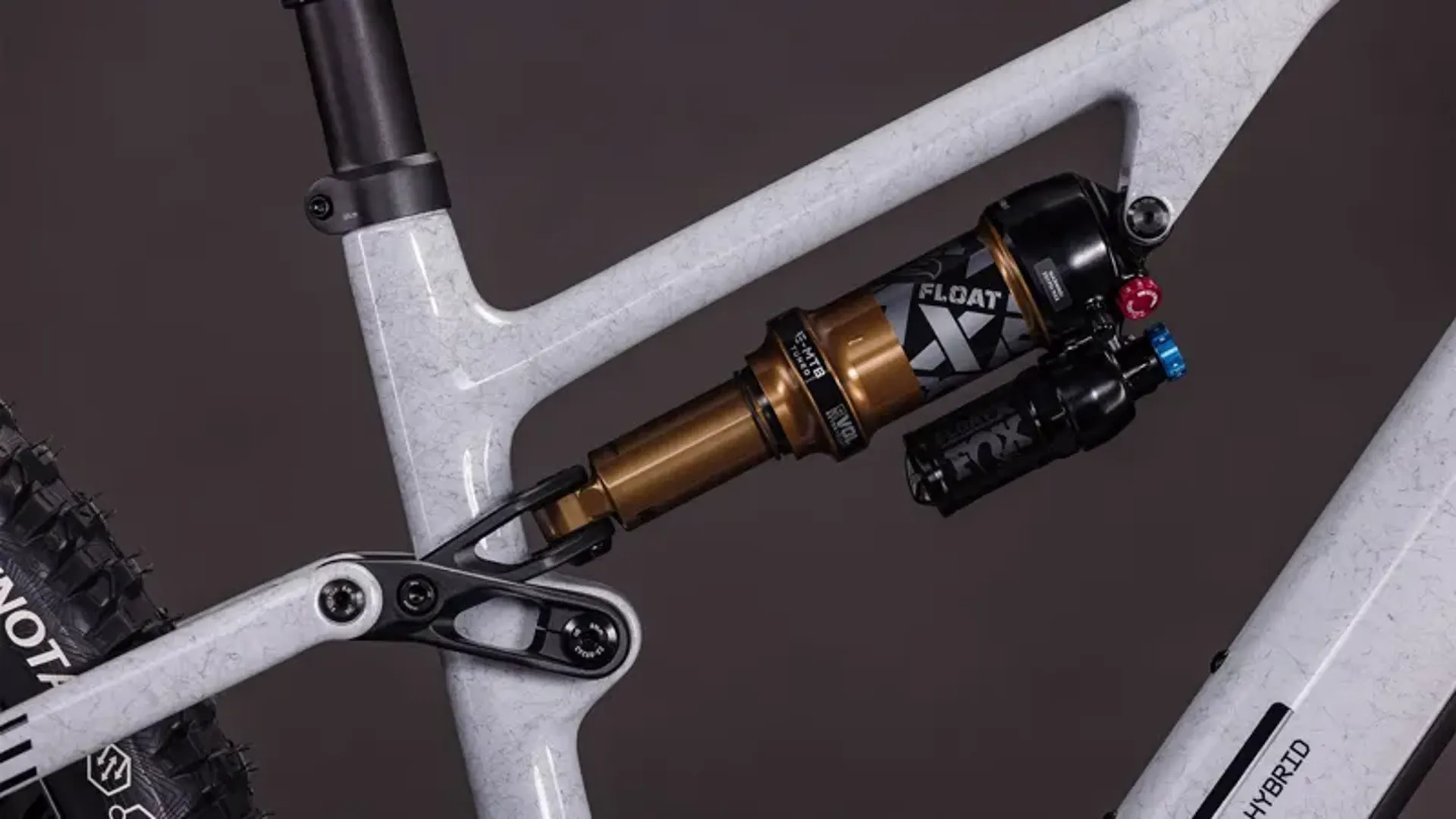

Shock
Fox Float X Factory, 210x55mm, Adjustable LSC/LSR w/ 2-Pos. Lever
-
Shock hardware
Front: 30x8mm, Rear: DU-Bushing 12.7mm
-
Drive unit
Bosch Drive Unit Performance SX max. 60Nm (BDU31)
-
Remote
Bosch System Control, incl. Mini Remote
-
Battery
Bosch CompactTube 400
-
Charger
Bosch 4A
-
Brake system
Sram Maven Ultimate, Hydr. Disc Brake (200/180)
-
Rear derailleur
Sram XX Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System
-
Shifters
Sram AXS™ Pod Ultimate Controller
-

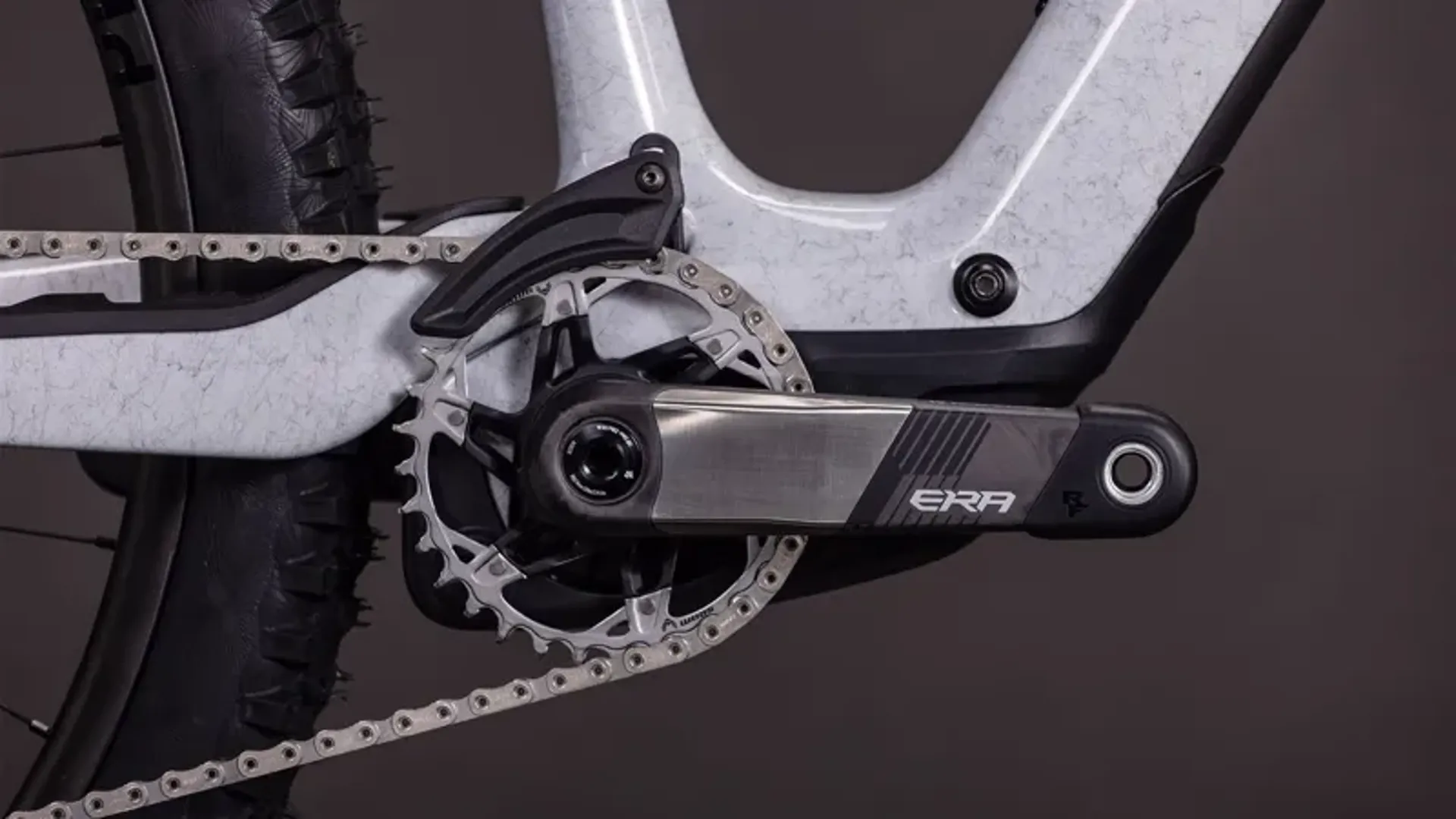

Crankset
Race Face ERA E-MTB, 32T
-
Cassette
Sram XS-1297, 10-52T
-
Chain
Sram XX Eagle™ Transmission
-
Chain guide
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
-
Headset
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
-
Integrated bar/ stem
CUBE Stereo Carbon Cockpit System
-
Grips
ACID Disrupt, Soft Compound
-
Wheelset
Newmen Phase 30 base/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
-
Front tyre
Conti Kryptotal Front, Enduro Soft, Tubeless Ready, 2.4
-
Rear tyre
Conti Xynotal, Enduro Soft, Tubeless Ready, 2.4
-
Saddle
ACID Venec EMTB Trail 140
-
Seat post
Fox Transfer Factory 31.6mm, Kashima Coated
-
Pedals
ACID PP MTB
-
Extras
Schwalbe Aerothan™ Inner Tubes w/ ClikValve
-
Weight
18,6 kg
