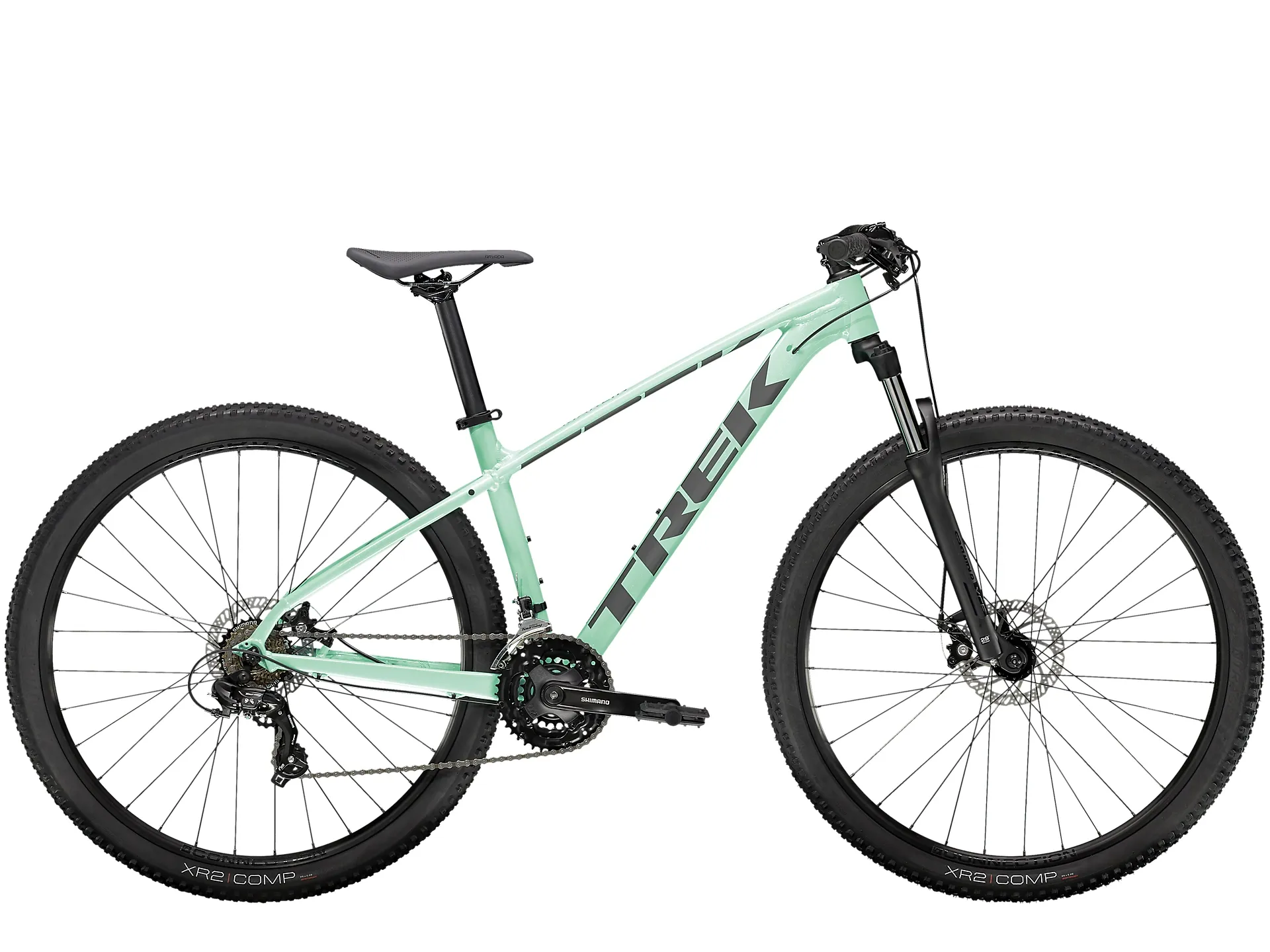

Trek Marlin 4 Mountain Bike in Green

Season:2023

Brand:Trek

Code:29759VoodooAlohaGRN

Marlin 4 is the perfect gateway to trail riding

It's ideal for new riders who want a mountain bike with knobby tires that can double as a rugged commuter. Disc brakes, front suspension, 21 speeds, and mounts for a rack and fenders make this a great bike for new trail riders and campus commuters alike.

Features:

  • It's a real mountain bike that's also perfectly suited to daily commutes, rides around campus, or just getting from A to B on any surface
  • Rack and fender mounts make it easy to accessorize, so your mountain bike can double as a rugged commuter
  • Smaller frame sizes (XS and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently
  • Marlin models in XS and S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount
  • Like every model in the Marlin family, it's backed by Trek's lifetime warranty
Technical Information
  • Frame
    Size: XS/S/M/ML/L/XL/XXL, Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
    Size: XS/S, Alpha Silver Aluminum, low standover, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
  • Fork
    Size: XS, SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
    Size: S, SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
    Size: M/ML/L/XL/XXL, SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
  • Max compatible fork travel
    100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)
  • Hub front
    Formula DC-20, alloy, 6-bolt, 5x100mm QR
  • Hub rear
    Formula DC-31, alloy, 6-bolt, 6/7/8 speed freewheel, 135x5mm QR
  • Rim
    Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
  • Spokes
    14g stainless steel
  • Tire
    Size: XS/S, Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''
    Size: M/ML/L/XL/XXL, Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''
    Size: M/ML/L/XL/XXL, Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.00''
  • Max tire size
    Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer
  • Shifter
    Shimano Altus EF500, 7 speed
  • Front derailleur
    Shimano Tourney TY300, 34.9mm clamp, down swing, down pull
  • Rear derailleur
    Shimano Tourney TY300, long cage, 34T max cog
  • Crank
    Size: XS/S/M, Shimano Tourney TY301, 42/34/24, 170mm length
    Size: ML/L/XL/XXL, Shimano Tourney TY301, 42/34/24, 175mm length
  • Bottom bracket
    VP BC73, 73mm, threaded cartridge
  • Cassette
    Shimano TZ500, 14-28, 7 speed
  • Chain
    KMC Z7, 7 speed
  • Pedal
    VP-536 nylon platform
  • Max chainring size
    1x/2x: 34T, 3x: 42T
  • Saddle
    Bontrager Arvada, steel rails, 138mm width
  • Seatpost

    Size: XS/S, Bontrager alloy, 31.6mm, 12mm offset, 330mm lengthSize: M, Bontrager alloy, 31.6mm, 12mm offset, 360mm length
    Size: ML/L/XL/XXL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length
  • Handlebar
    Size: XS/S, Bontrager alloy, 31.8mm, 5mm rise, 690mm width
    Size: M/ML/L/XL/XXL, Bontrager alloy, 31.8mm, 5mm rise, 720mm width
  • Grips
    Bontrager XR Endurance Comp, lock-on
  • Stem
    Size: XS, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
    Size: S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
    Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
    Size: ML/L, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length
    Size: XL/XXL, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
  • Headset
    Semi-integrated, 1-1/8''
  • Brake
    Size: XS/S/M/ML/L/XL/XXL, Tektro MD-M280 mechanical disc, 160mm rotor
    Size: XS/S/M/ML/L/XL/XXL, Tektro MD-M281 mechanical disc
  • Weight
    M - 30.82 lbs / 13.9815 kg
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg)
