Norco:

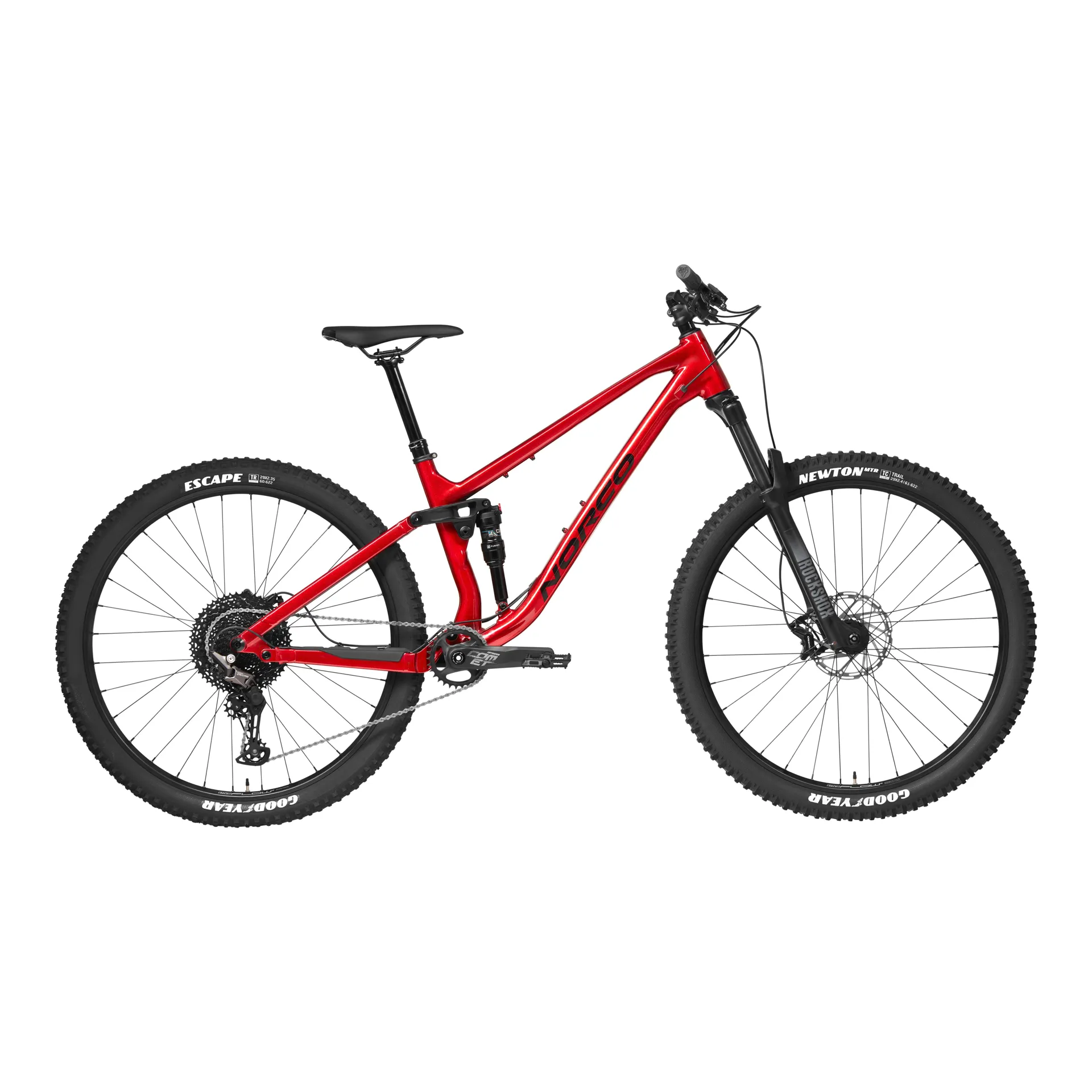

named pinkbike’s value bike of the year and vital mtb’s bike of the year, the norco fluid fs is built to help you become the rider you want to be.
Get everything out of the trail that you put into it. The fluid fs a4's 130mm travel is precision engineered, pairing custom tuned suspension components with 140mm fork travel and boutique level fit & finish for maximum trail performance & potential.
Intuitive precision handling to pick the perfect line.
Engineered using the same norco technology and process as our top-tier trail bikes to give you the ride of your life no matter what path you follow. That’s why it won pinkbike's value bike of the year.
Top-tier design and features over-deliver as skills evolve.
6061 aluminum frame gives experienced trail riders what they need to ride their best and helps evolving riders develop new skills and preferences without limits.
Sophisticated suspension components for full-platform performance and tunability.
Precision-engineered 130mm rear suspension features custom-tuned dampers co-developed with the shock manufacturers provides fully customized suspension setup and performance for every rider.
Long-travel droppers and generous standover get you through the rough stuff.
Long-travel, size-specific 34.9mm dropper posts and low-slung top tubes create lots of room to move, letting you roll confidently through challenging terrain and push your limits.
Refined design and expanded size range for accessible trail performance.
Boutique-level fit & finish is available in 5 frame sizes, delivering superior trail performance to riders between 5’1” and 6’7” with components selected to offer peak performance and durability.
Perfect fit, dialed handling and personalized setup in minutes.
The ride aligned™ design system matches each fluid fs to the human who rides it. Rider-first geometry and suspension kinematics combine with custom fit and suspension tuning for personalized performance from day one.
specifications
frameset
frame 6061 alloy, 130mm travel
fork rockshox recon silver rl, 140mm travel , 42mm offset
rear shock x-fusion 02 Pro r, custom tune, 210x50mm
drivetrain
rear shifter shimano deore sl-m5100
rear derailleur shimano deore rd-m5100
crankset fsa comet 1x dm, 30t, 170mm (s), 175mm (m - xxl)
bottom bracket fsa megaexo, bsa threaded
cassette sunrace csms8, 11/51t, 11 speed
chain kmc x11
brakes
front brake tektro hd-m535, 4 piston, organic pads
front brake rotor tektro tr180-22, 180mm
rear brake tektro hd-m535, 4 piston, organic pads
rear brake rotor tektro tr180-22, 180mm
brake levers tektro hd-m535
components
handlebar e*thirteen, 800mm, 20mm rise
stem 6061 alloy, 40mm length, 35mm clamp
seatpost sdg tellis dropper, 34.9mm, 150mm (s), 170mm (m, l), 200mm (xl, xxl)
dropper lever sdg dropper lever
headset sealed bearing, tapered
saddle norco trail
grips wtb waffle, lock-on
pedals vp nylon flat
wheels
front hub bear pawls sealed bearing, 15x110mm boost, 6 bolt
rear hub bear pawls sealed bearing, 12x148mm boost, hg, 6 bolt
rims stan's flow d, 29", 32h
front tire goodyear newton 2.4", folding
rear tire goodyear escape 2.35", folding
spokes/nipples stainless, black
