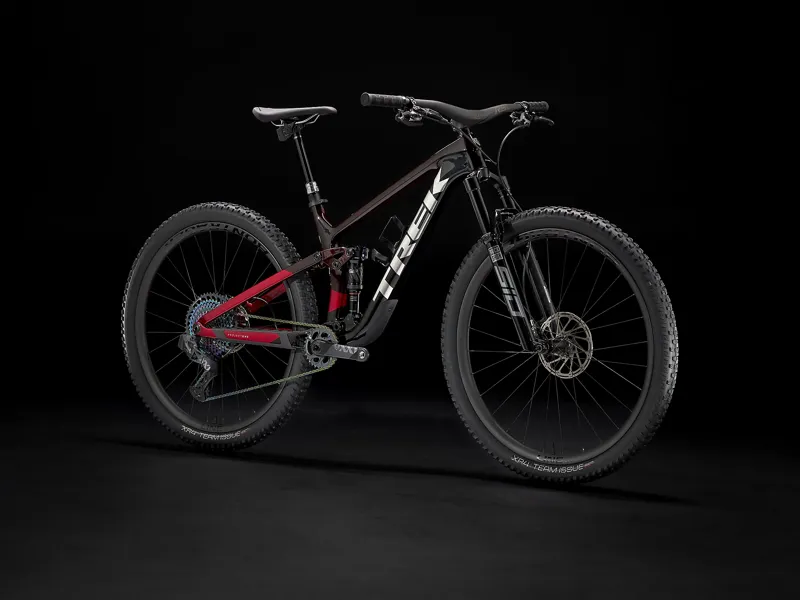

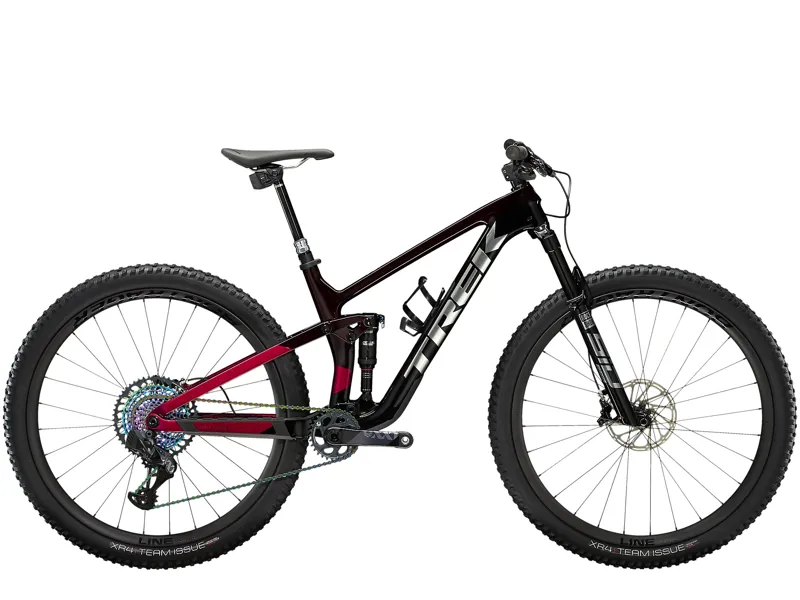

2022 Trek Top Fuel 9.9 XX1 AXS MTB in Carbon Red Smoke/Black

Season:2022

Brand:Trek

Code:35326CBNREDSMKBLK

The Top Fuel 9.9 XX1 AXS pulls out all the stops.

This full-suspension carbon mountain bike is built with the latest in fully wireless components like a SRAM XX1 Eagle AXS drive train and RockShox Reverb AXS dropper. It's also spec'd with high-end RockShox suspension and lots of carbon – including the wheels, bars and shift levers.

Features:

  • The SRAM XX1 Eagle AXS drivetrain is smart, smooth and completely wireless
  • The OCLV Carbon RSL integrated bar/stem is ultra-light and ultra-comfortable, and it looks awesome

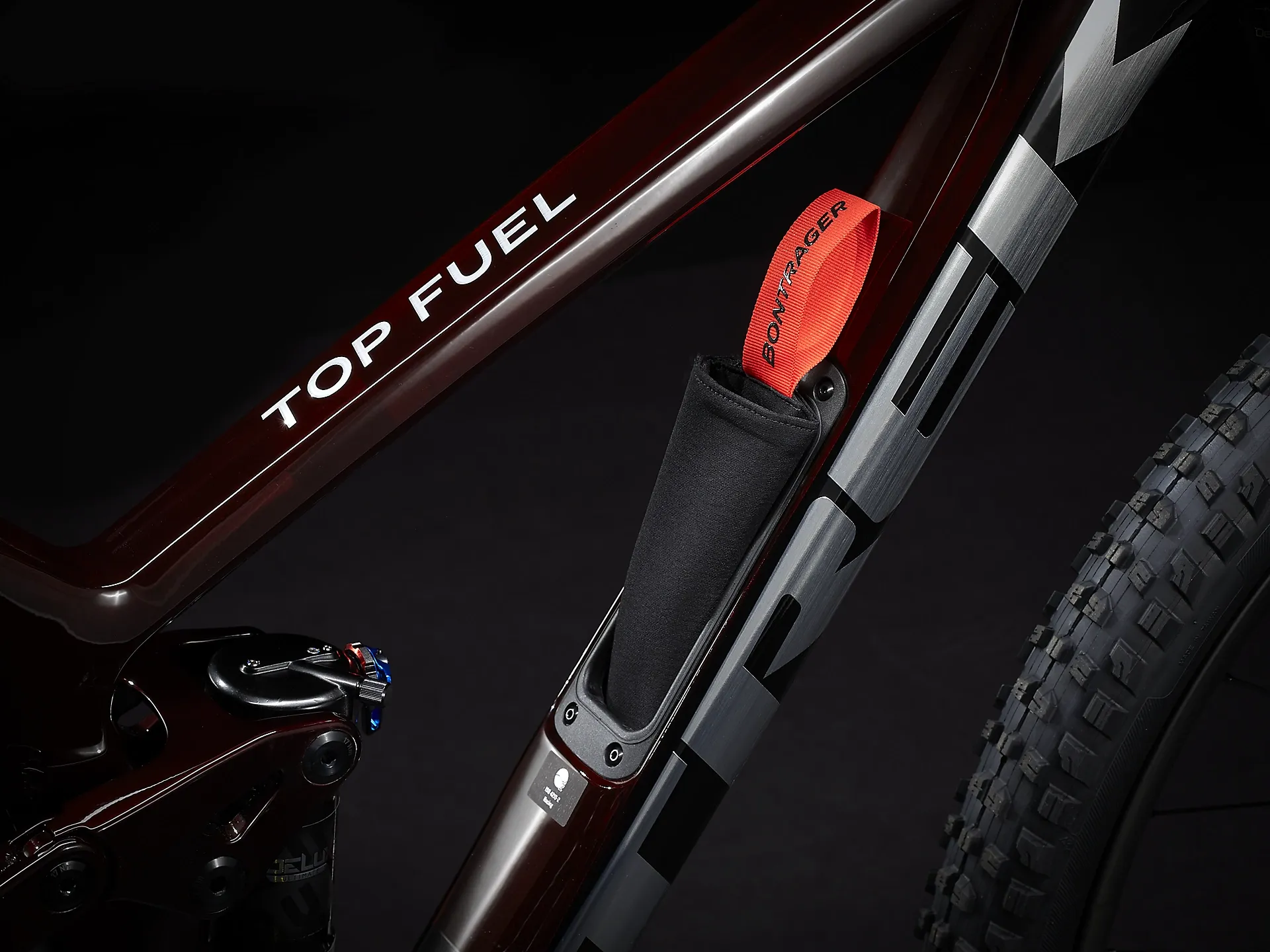

  • A sleek internal storage compartment gives you a versatile spot to stow tools and gear
  • Wider Line Pro 30 wheels provide better tyre support so you can run lower pressure and get more traction
Technical Information
  • Frame
    OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
  • Fork
    RockShox SID Ultimate, DebonAir spring, Charger Race Day damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel

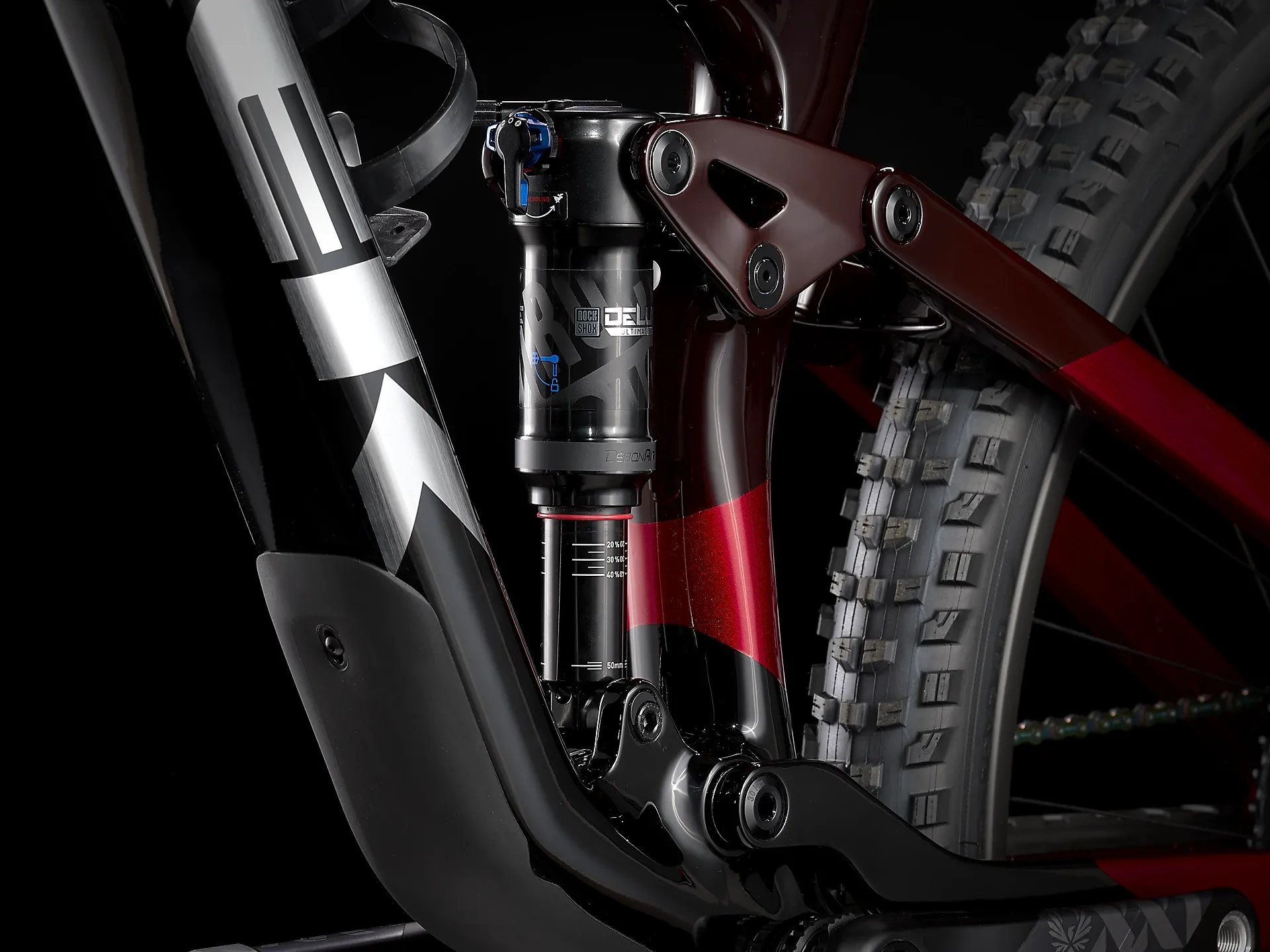

  • Shock
    RockShox Deluxe Ultimate RCT, 185 mm x 50 mm
  • Max compatible fork travel
    130mm (541mm axle-to-crown)
  • Wheel front
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru axle
  • Wheel rear
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost 148, 12 mm thru axle
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Rim
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle

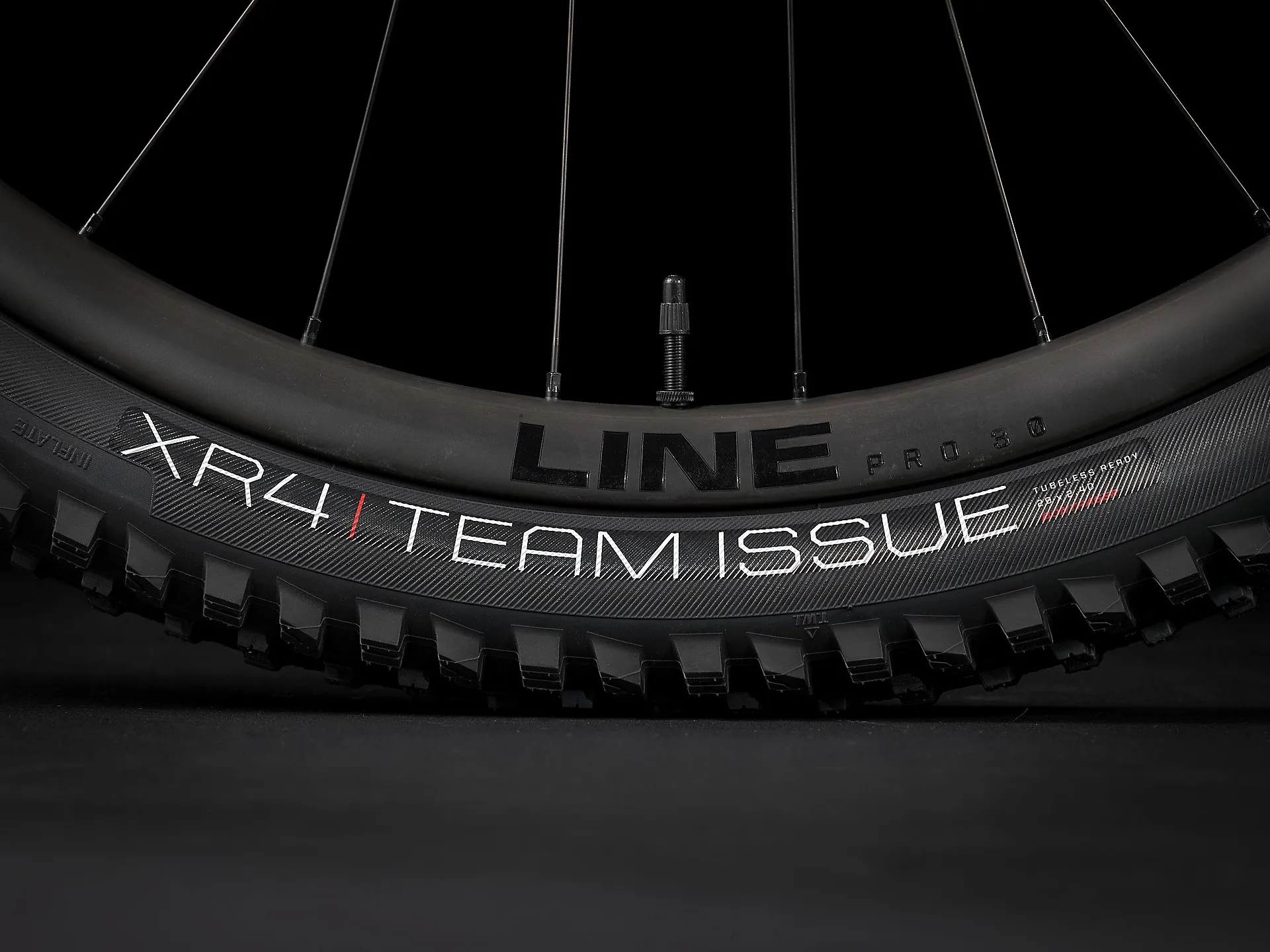

  • Tyre
    Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29.x2.40"
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip
    Bontrager TLR
  • Max tyre size
    Frame: 29x2.5" Fork: see manufacturer
  • Shifter
    SRAM Eagle AXS, wireless, 12-speed

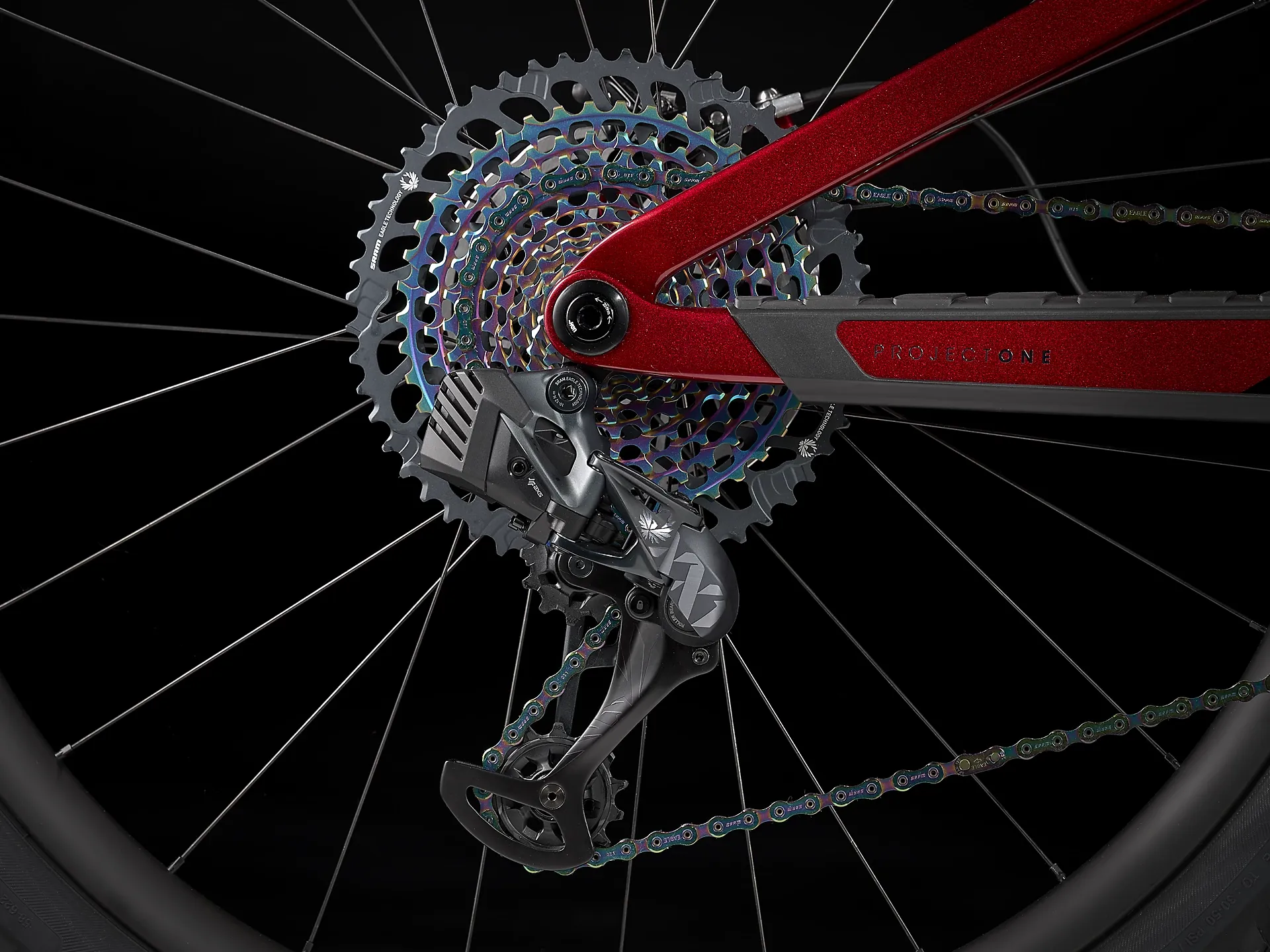

  • Rear derailleur
    SRAM XX1 Eagle AXS

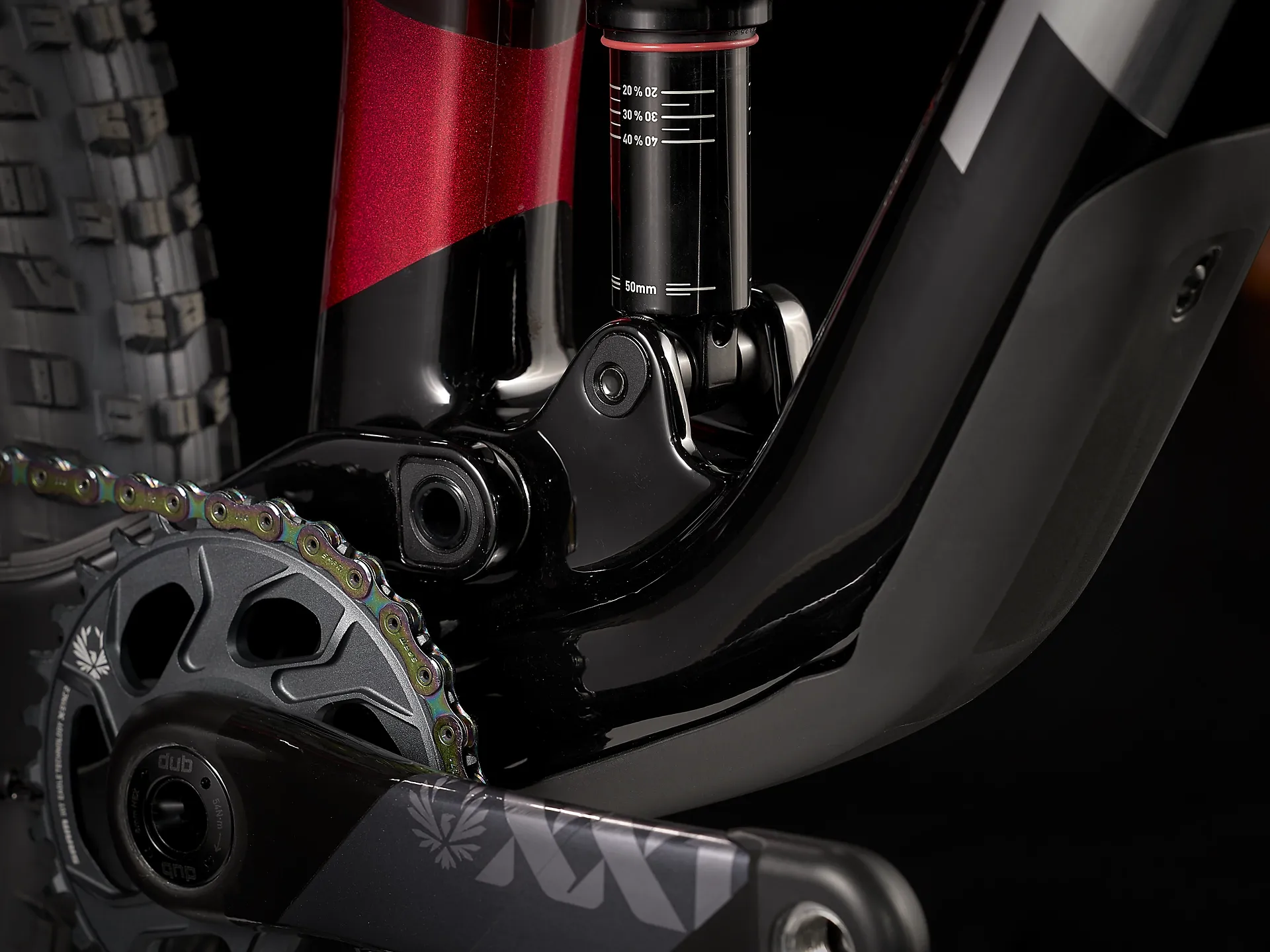

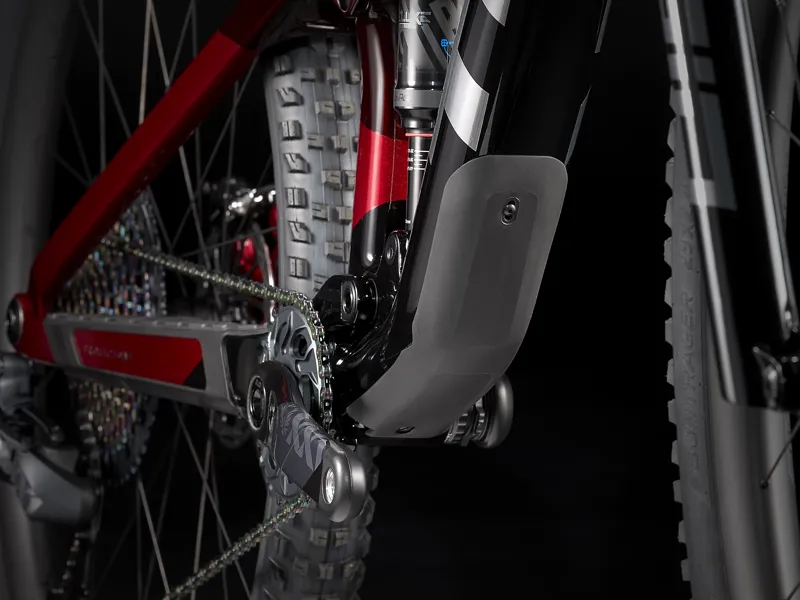

  • Crank
    Size: S/M/ML/L, SRAM XX1 Eagle, DUB, 30T alloy ring, 55 mm chainline, 170 mm length
    Size: XL, SRAM XX1 Eagle, DUB, 30T alloy ring, 55 mm chainline, 175 mm length

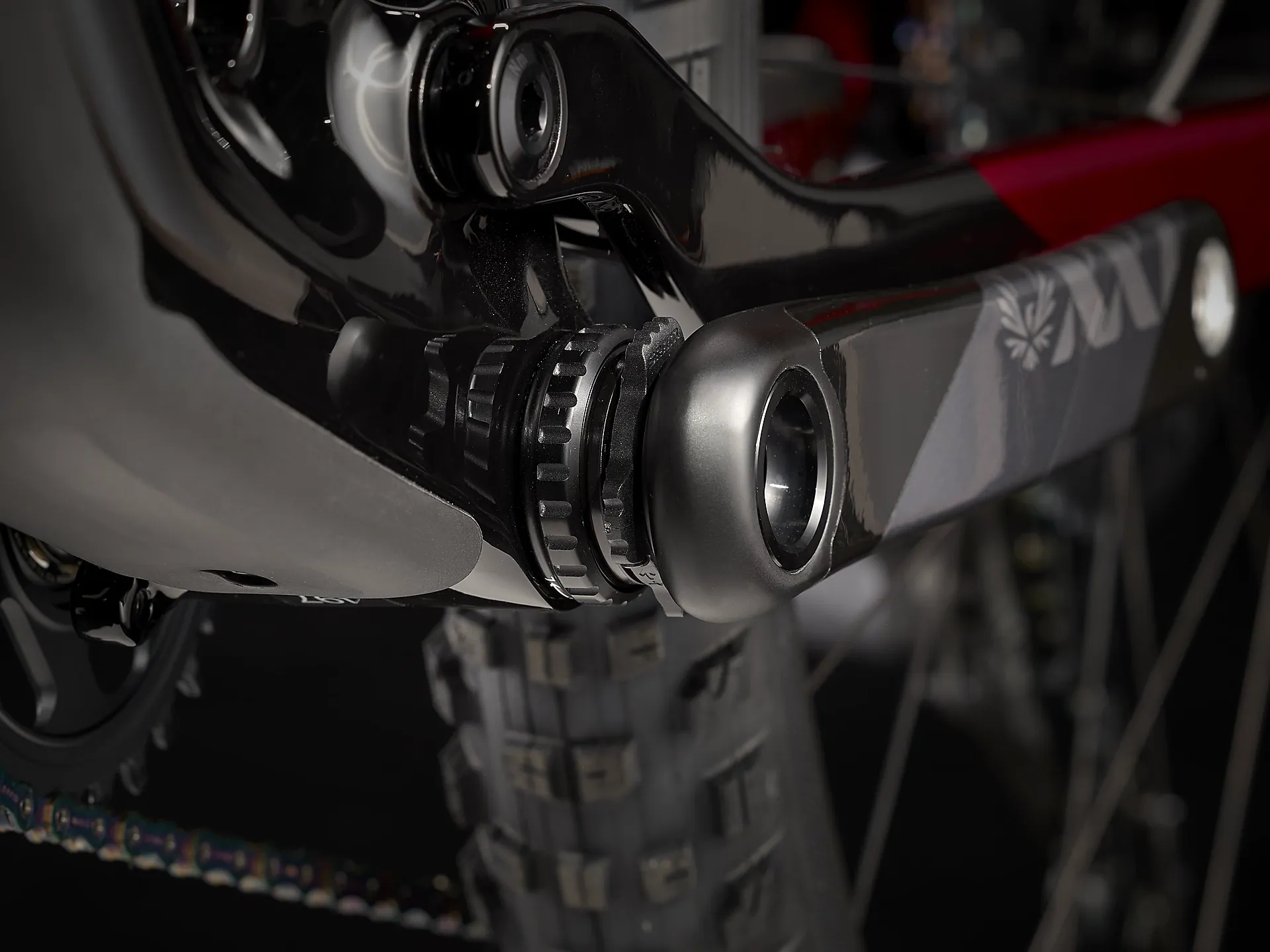

  • Bottom bracket
    SRAM DUB MTB Wide, 73 m, BSA threaded
  • Cassette
    SRAM Eagle XG-1299, 10-52, 12-speed
  • Chain
    SRAM XX1 Eagle, 12-speed
  • Max. chainring size
    Max: 36T (oval - 34T) Min: 28T
  • Saddle
    Bontrager Arvada, austenite rails, 138 mm width
  • Seatpost
    Size: S, RockShox Reverb AXS, 100 mm travel, wireless, 34.9mm, 340 mm length
    Size: M/ML, RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 440mm length
    Size: L/XL, RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length

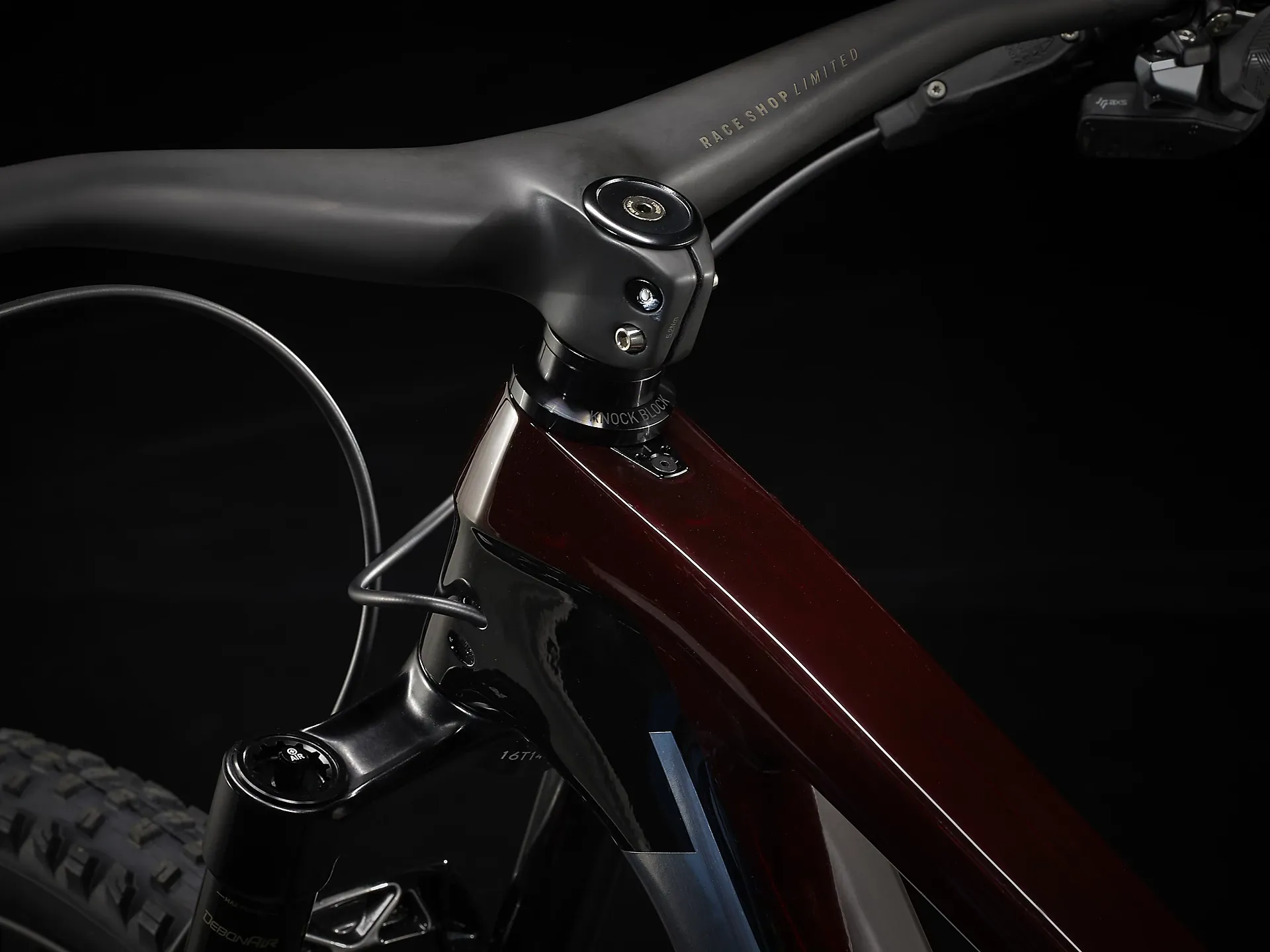

  • Integrated Bar Stem
    Size: S, Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length
    Size: M/ML/L/XL, Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
  • Head set
    Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom
  • Brake
    SRAM G2 Ultimate hydraulic disc, carbon levers

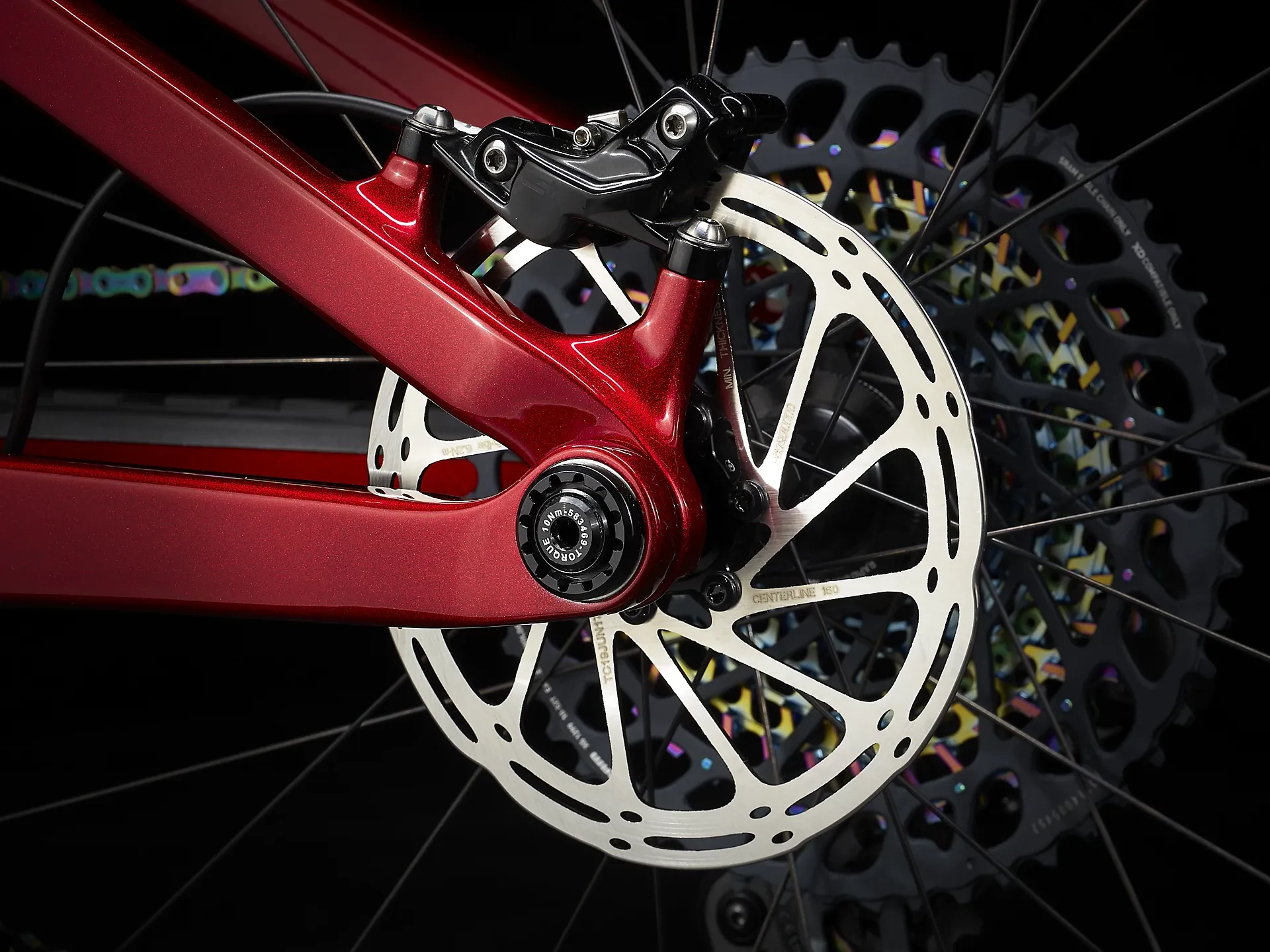

  • Brake rotor
    Size: S/M/ML/L/XL, SRAM CenterLine, 6-bolt, round-edge, 160 mm
    Size: S/M/ML/L/XL, SRAM CenterLine, 6-bolt, round edge, 180 mm
  • Battery
    SRAM eTap battery pack (with charger)
  • Weight
    M - 26.12 lbs / 11.85 kg (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
