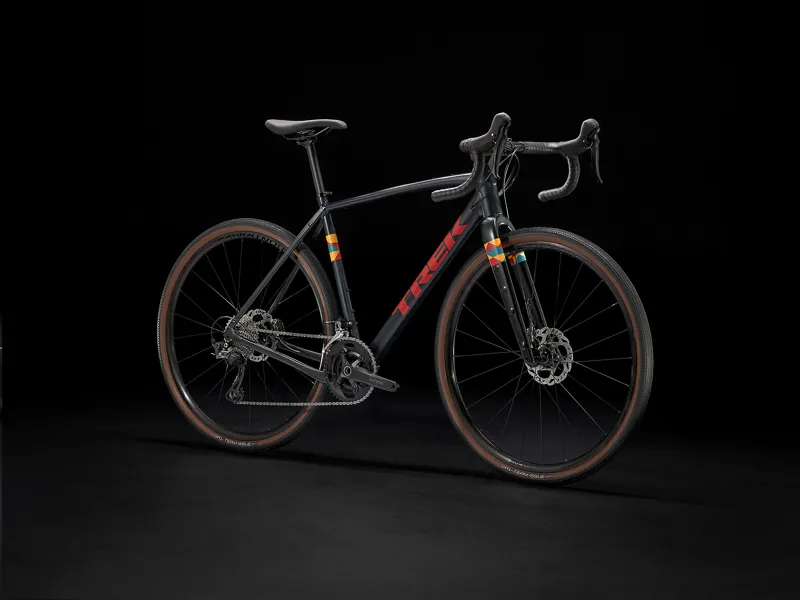

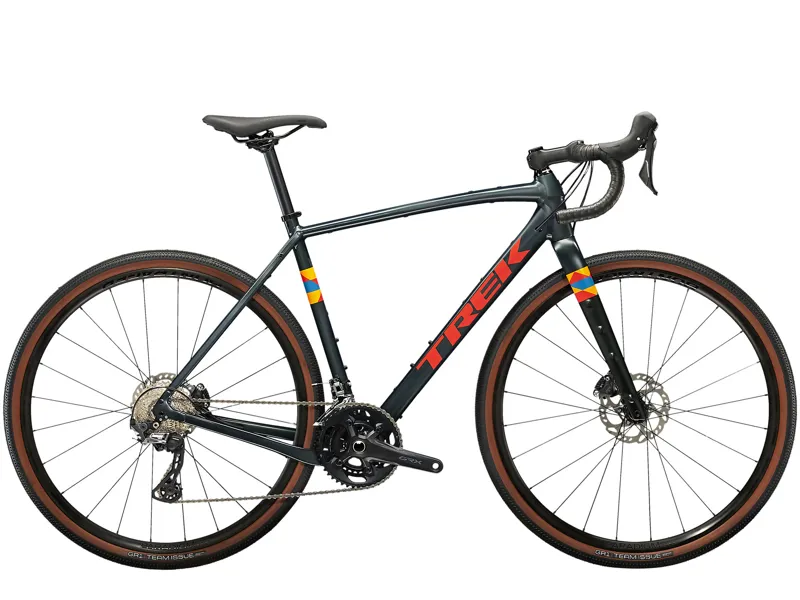

Trek Checkpoint ALR 5 Gravel Bike

Season:2023

Brand:Trek

Code:35172SATNauticalNVYSATRED

Checkpoint ALR 5 is the best value gravel bike in the line-up.

It's a high-quality build that will hold up for long, rugged miles on roads, dirt and even the most treacherous gravel. A wealth of features like nimble-yet-stable progressive geometry, loads of mounts, plus a GRX drivetrain make it easy to customise for your kind of adventure.

Features:

  • All-new progressive geometry is quick and nimble yet keeps you stable and in control on fast, choppy descents
  • This bike is exceedingly versatile and suited to a wide variety of riding styles, including gravel rides, bike-packing and daily commutes
  • Massive tyre clearance means you can use tyres up to 45 c for extra traction and stability in any conditions

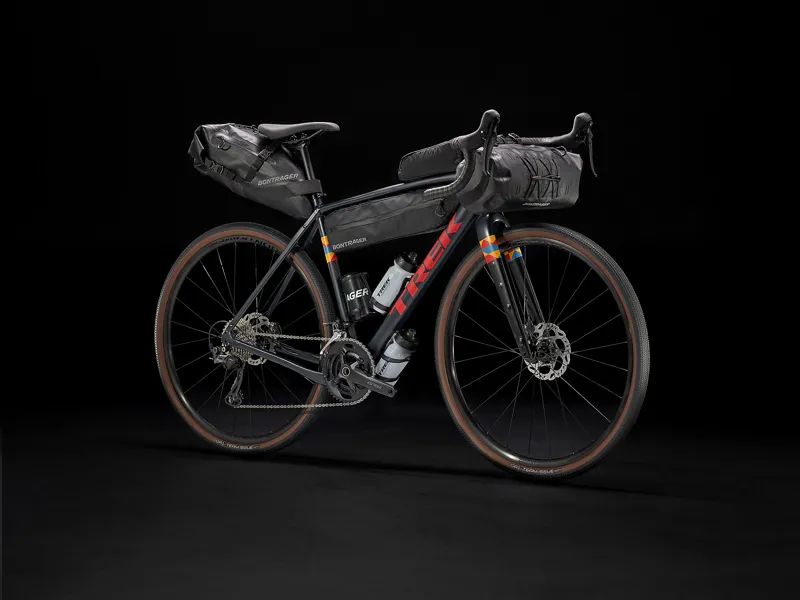

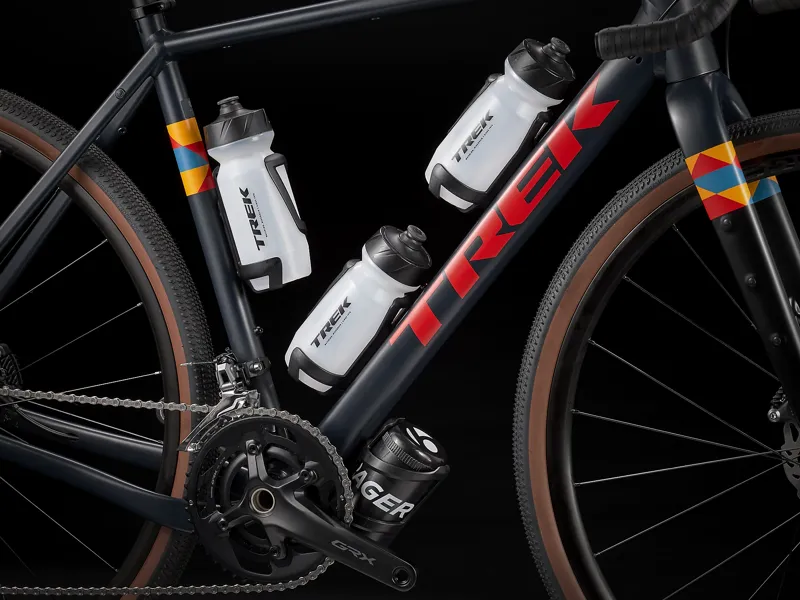

  • Integrated frame bag mounts and rack and mudguard mounts make it easy to carry gear and water
Technical Information

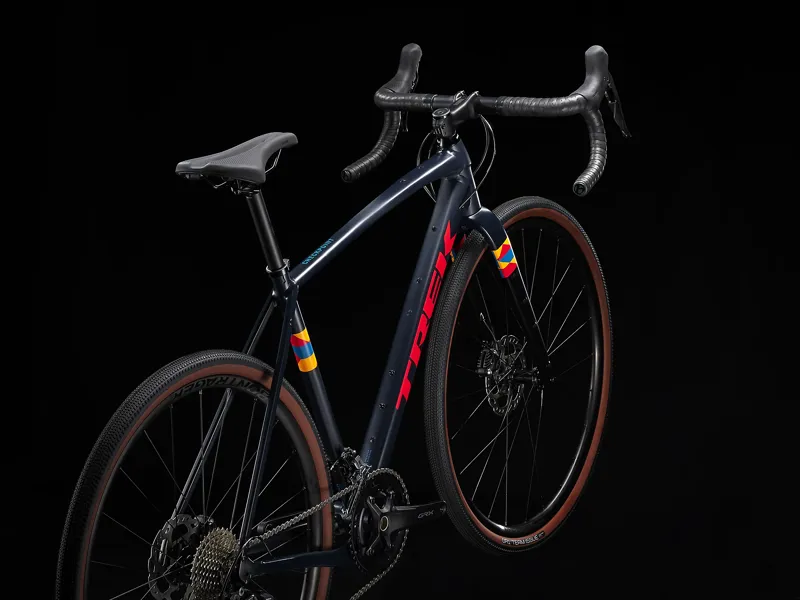

  • Frame
    300 Series Alpha Aluminium, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm thru-axle

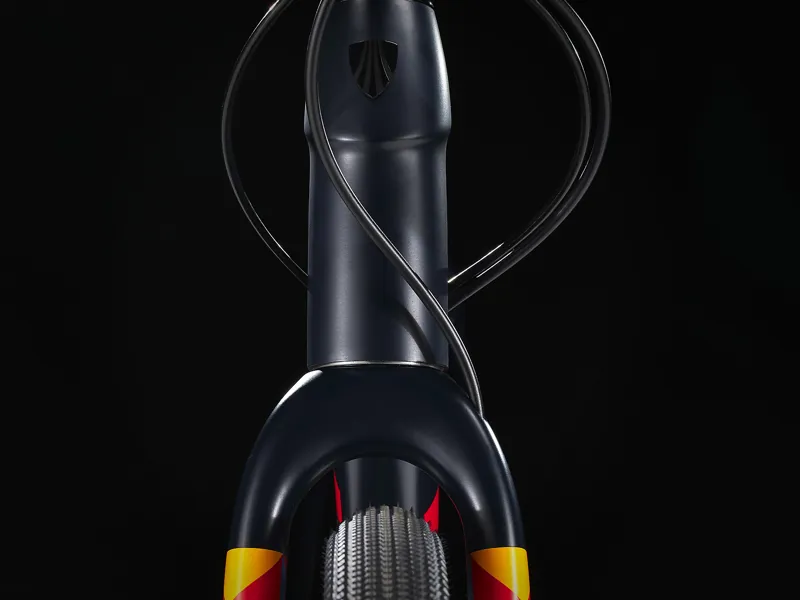

  • Fork
    Checkpoint, carbon legs, tapered alloy steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
  • Frame fit
    Gravel
  • Hub front
    Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
  • Skewer front
    Bontrager Switch thru axle, removable lever
  • Hub rear
    Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Rim
    Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
  • Spokes
    14 g stainless steel
  • Tyre
    Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 c
  • Tyre part
    Size: 49/52/54/56/58/61, Bontrager TLR sealant, 180 ml/6 oz
    Size: 49/52/54/56/58/61, Bontrager XXX TLR valve, 50 mm
  • Rim strip
    Bontrager Aeolus XXX rim strip
  • Max tyre size
    700x45c / 650x2.1" Bontrager tires

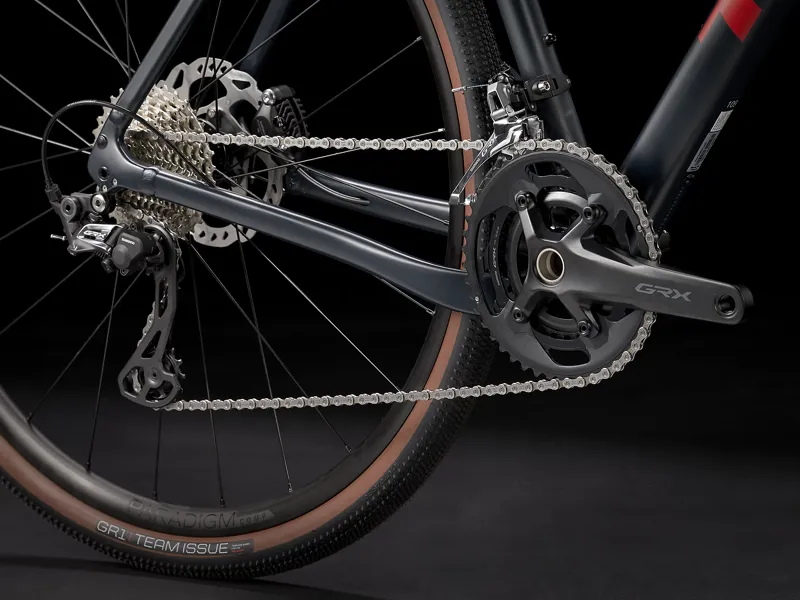

  • Shifter
    Shimano GRX RX600, 11-speed
  • Front derailleur
    Shimano GRX RX810, braze-on
  • Rear derailleur
    Shimano GRX RX810, long cage, 34T max cog
  • Crank
    Size: 49, Shimano GRX RX600, 46/30, 165 mm length
    Size: 52, Shimano GRX RX600, 46/30, 170 mm length
    Size: 54/56, Shimano GRX RX600, 46/30, 172.5 mm length
    Size: 58/61, Shimano GRX RX600, 46/30, 175 mm length
  • Bottom bracket
    Praxis, T47 threaded, internal bearing
  • Cassette
    Shimano 105 HG700-11, 11-34, 11-speed
  • Chain
    Shimano HG601
  • Max. chainring size
    1x: 44T SRAM or 50T Shimano, 2x: 50/34
  • Saddle
    Size: 49/52, Bontrager P3 Verse Comp, steel rails, 155 mm width
    Size: 54/56/58/61, Bontrager P3 Verse Comp, steel rails, 145 mm width
  • Seatpost
    Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

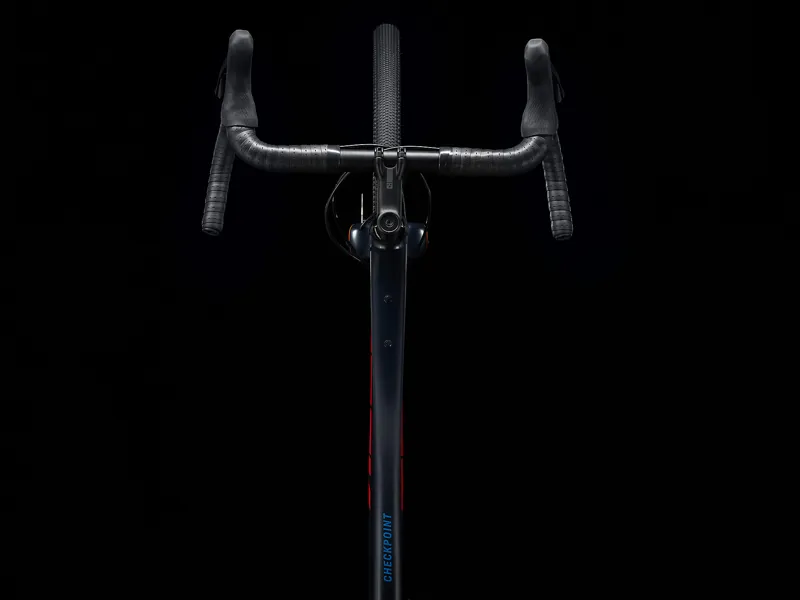

  • Handlebar
    Size: 49, Bontrager Elite Gravel, 38 cm width
    Size: 52, Bontrager Elite Gravel, 40 cm width
    Size: 54/56, Bontrager Elite Gravel, 42 cm width
    Size: 58/61, Bontrager Elite Gravel, 44 cm width
  • Handlebar tape
    Bontrager Supertack Perf tape

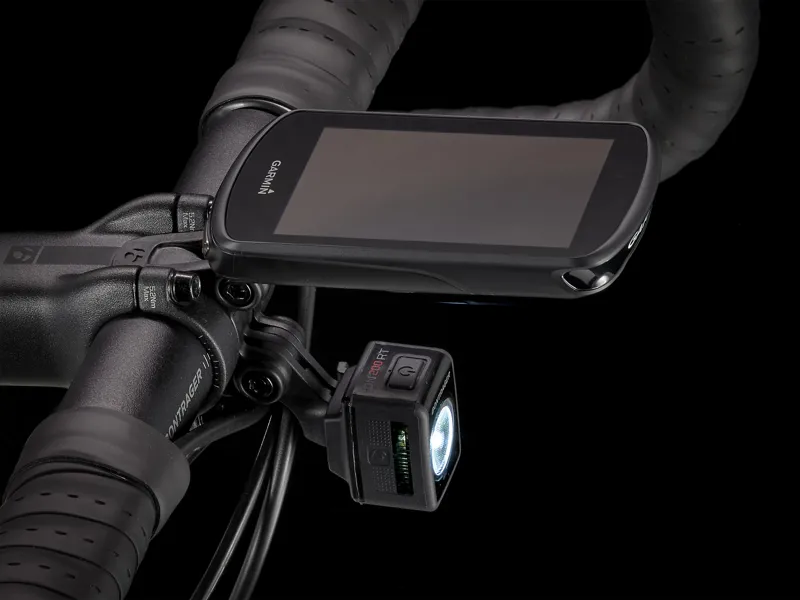

  • Stem
    Size: 49, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
    Size: 52/54, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
    Size: 56/58, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
    Size: 61, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length

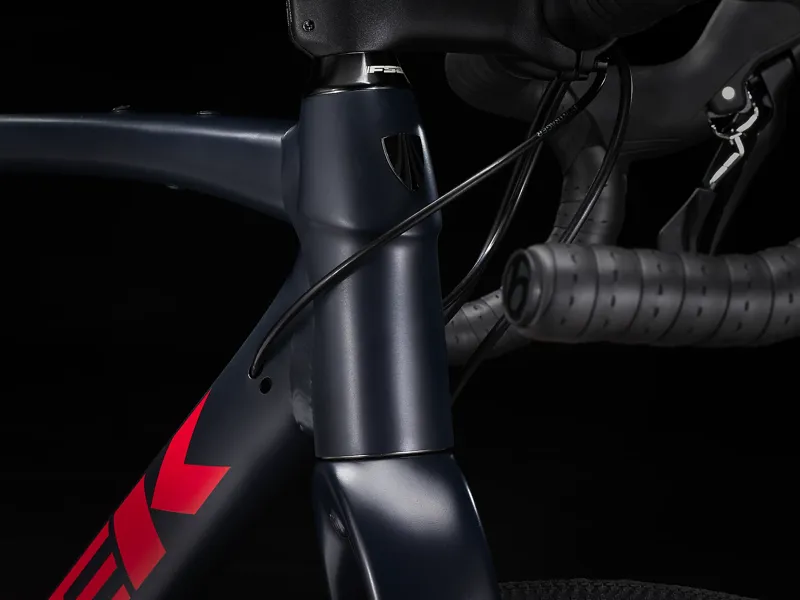

  • Head set
    FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom

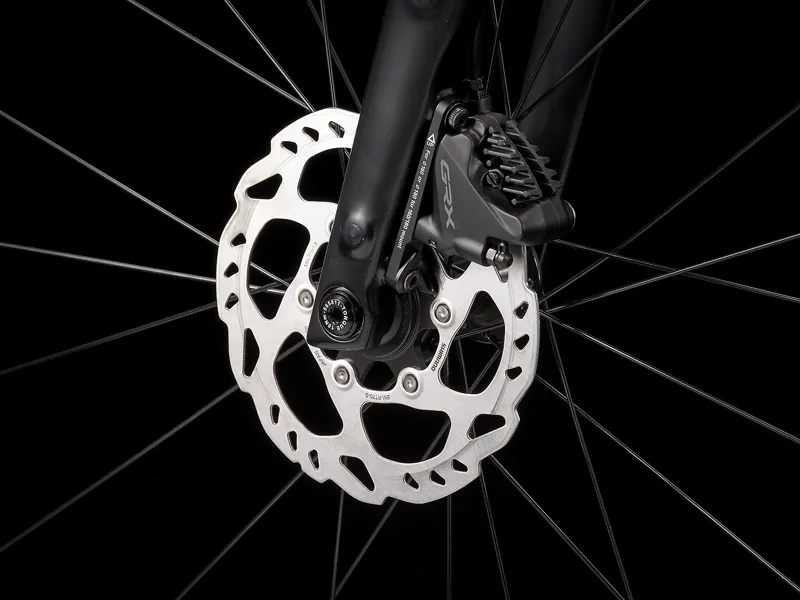

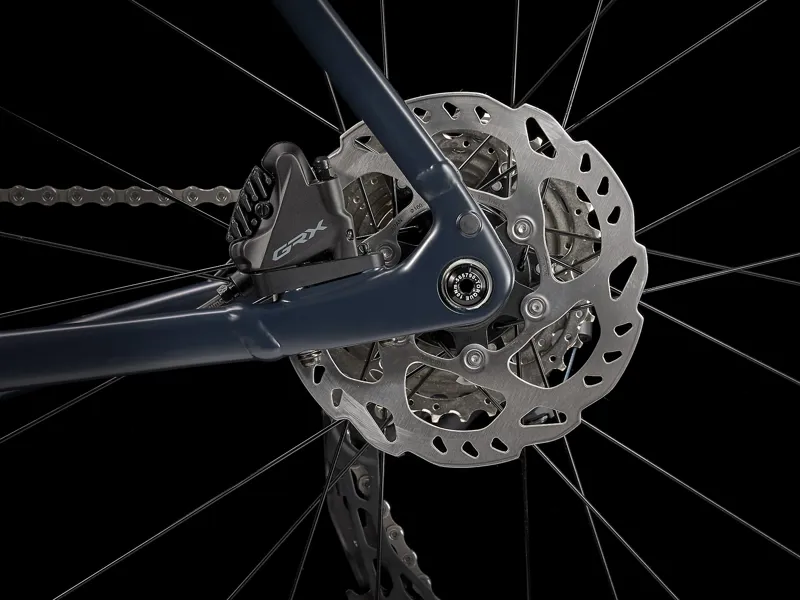

  • Brake rotor
    Shimano SM-RT70, CenterLock, 160 mm
  • Weight
    56 - 21.50 lbs / 9.75 kg
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
