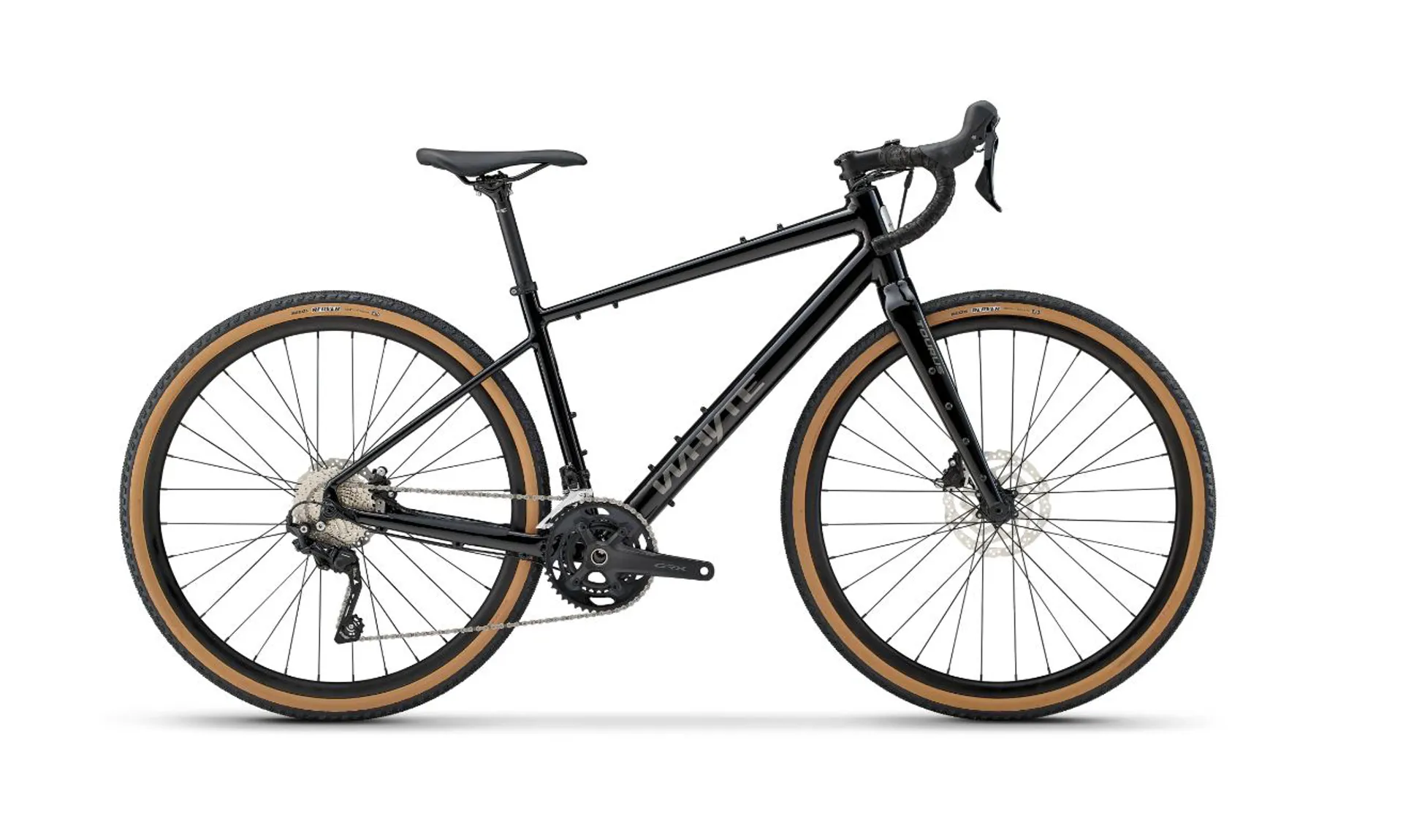

COLOUR | Gloss black and silver | CASSETTE | Shimano CS-HG500, 11-34T, 10 speed |
---|
FRAME | 6061 alloy, hydroformed T6 aluminium, multi-butted, tapered head tube, internal cable routing and custom Whyte dropouts | CHAIN | Shimano CN-HG54 |
---|
FORK | Whyte straight bladed 6061 alloy, alloy tapered steerer, internal cable routing, 12mm thru-axle, flat mount with mudguard and mounting bosses | CRANKSET | Shimano FC-RX600, 170mm length (size XS and S), 172.5mm (size M, L and XL), 46-30T chainring |
---|
REAR SHOCK | N/A | BOTTOM BRACKET | Shimano SM-BB52, 68/73mm |
---|
HEADSET | No. 69 SRS, 1-1/8in upper and 1.5in lower with sealed cartridge bearings and front entry for cables | SEATPOST | Whyte 6061 Alloy, 20mm offset, 27.2mm x 350mm, two-bolt clamp |
---|
REAR HUB | Alloy, Double Sealed Cartridge Bearings, 12mm x 142mm Thru Axle, Centre-Lock, 32 Hole | SADDLE | Whyte Custom |
---|
FRONT HUB | Alloy, double sealed cartridge bearings, 12mm x 142mm thru axle, Center-Lock, 32 hole | HANDLEBAR | Whyte, 6061 alloy, 70mm reach, 120mm drop, 10° flare 31.8mm x 400mm (sizes XS + S), 420mm (size M), 440mm (size L), 460mm (size XL) |
---|
SPOKES | 2.0mm, PG, black stainless, brass nipples | STEM | Whyte Alloy, +-7° rise, 60mm length (size XS + S), 70mm (sizes M, L, + XL) |
---|
RIMS | 23mm internal width, tubeless ready, 32 hole | GRIPS | Whyte anti-slip, ‘cross bar tape |
---|
TYRE | Maxxis Reaver Tanwall 700 x 45c, EXO wire bead | BRAKES FRONT | Shimano GRX BR-RX400, Flat Mount, internal routing, 180mm rotor |
---|
SHIFT LEVERS | Shimano GRX ST-RX400, 10 Speed | BRAKES REAR | Shimano GRX BR-RX400, Flat Mount, internal routing, 160mm rotor |
---|
FRONT MECH | Shimano GRX RD-RX400, 10 Speed | BRAKE LEVERS | Shimano GRX ST-RX600, hydraulic |
---|
REAR MECH | Shimano GRX RD-RX400, Shadow Plus, 10 Speed | PEDALS | Fibre reinforced composite platform |
---|
