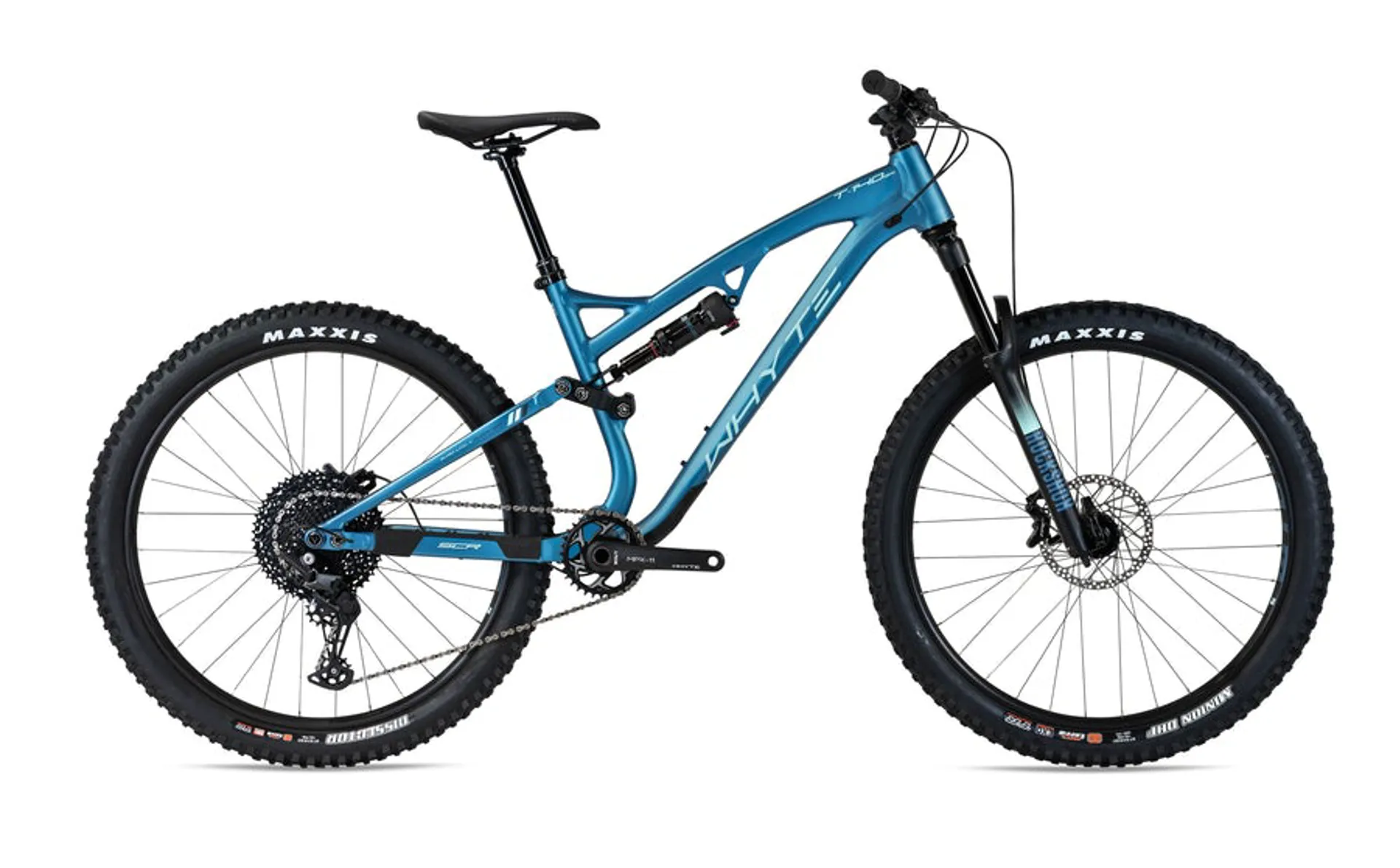

Whyte T-140 SR Blue V2

Season:2023

Brand:Whyte Bikes

Code:WT140SR-22

FLAT OUT FOR LESS

You just can’t get a better trail raging, all-rounder for the money than our top value SR spec T-140. That’s because it uses the same trail and bike test dominating Total Geometry handling, evolved alloy frames of our most popular bikes. We then add the outstanding performance and value RockShox’s 35 fork and Shimano’s ultra-reliable 11 speed Deore gears so you spend far more time tearing up the singletrack than spannering on your bike.

This year we’ve even treated it to exactly-the-same top spec Maxxis 27.5 x 2.6in tyre spec as our flagship carbon bikes. Crushing the trails and the competition? Completed it mate.

Technical Information
SPECIFICATION
COLOURMatt Diesel Light Blue/SlateCASSETTESunRace CSMS8, 11-51, 11 Speed
FRAME6061 Alloy, SCR Aluminium Front Triangle with Tapered Head Tube and Intergrip Seat Clamp System, ISCG, 2 Bolt Guide Mounts, Alloy Symmetrical SCR Rear Triangle, 148mm Boost DropoutsCHAINSunRace, 11 Speed
FORKRockShox 35 Gold RL 27.5", 140mm Travel, 37mm Offset, DebonAir, Motion Control Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle UltimateCRANKSETWhyte, Forged 2pcs Cranks, Direct Mount alloy 32T Narrow Wide Boost Chainring, 170mm, Boost, 11 Speed
REAR SHOCKRockShox Deluxe Select + RT, DebonAir, Fast Black Coating, Adjustable Rebound and 2 Position CompressionBOTTOM BRACKETBSA, Cartridge Bearings, 73mm
HEADSETFSA No. 57 Orbit ZS, ACB, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge BearingsSEATPOSTTrans-X, 30.9mm, XS 100mm Travel, S 125mm Travel, M/L/XL 150mm Travel, Shimano Remote Lever
REAR HUBAlloy, Double Sealed Cartridge Bearings, Centre Lock 12mm x 148mm Boost Thru Axle, 32 HoleSADDLEWhyte Custom, Dual Density, Triple Panel Design
FRONT HUBAlloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 HoleHANDLEBARWhyte 6061 Alloy, 31.8mm, XS/S 15mm Rise, 760mm Wide, M/L/XL, 30mm Rise 780mm Wide
SPOKESDT Swiss Champion 2.0mm, Black Stainless, Brass NipplesSTEMWhyte Gravity Stem, 35mm Extension
RIMSWTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 HoleGRIPSWhyte Lock-on Enduro Grip
TYREMaxxis Minion DHF TR 27.5" x 2.6" 120TPI, EXO Sidewall Protection, 3C Maxx Terra, Front, Maxxis Dissector TR 27.5" x 2.6" 60TPI, EXO+ Sidewall Protection, RearBRAKES FRONTTRP Slate Evo, 4 Piston with Sintered Metal Pad, 180mm Disc
SHIFT LEVERSShimano Deore M5100, I-Spec EV 11 Speed, BlackBRAKES REARTRP Slate Evo, 4 Piston with Sintered Metal Pad, 180mm Disc, Internal Routing
FRONT MECHN/ABRAKE LEVERSTRP Slate Evo
REAR MECHShimano Deore RD-M5100-SGS, Shadow Plus, 11 SpeedPEDALSNone
WEIGHTTBC
Sizing Information
SIZE GUIDE
XSSMLXL
4’7″ – 5’3”5’3″ – 5’6”5’6″ – 5’10”5’10” – 6’2″6’2″ – 6’6″
145 – 160 cm160 – 168 cm168 – 178 cm178 – 188 cm188 – 198 cm
Professional Opinion
GEOMETRY
SIZEXSSMLXL
A
HEAD TUBE ANGLE		65.9 (65.3)65.9 (65.3)65.9 (65.3)65.9 (65.3)65.9 (65.3)
B
SEAT TUBE ANGLE		74.974.774.574.374.1
C
TOP TUBE HORIZONTAL		555583612640669
D
BB HEIGHT ABOVE GROUND		330 (322)330 (322)330 (322)330 (322)330 (322)
E
STAND OVER HEIGHT		788796802808815
F
WHEEL BASE		11391168119812281256
G
CHAIN STAY LENGTH		435435435435435
H
SEAT POST DIAMETER		30.930.930.930.930.9
I
HEAD TUBE LENGTH		100112125140150
J
SEAT TUBE LENGTH		368.3406.4431.8457.2482.6
STACK593594616630639
REACH408432456480504
