The pinnacle of bmx technology. The ultimate street setup.

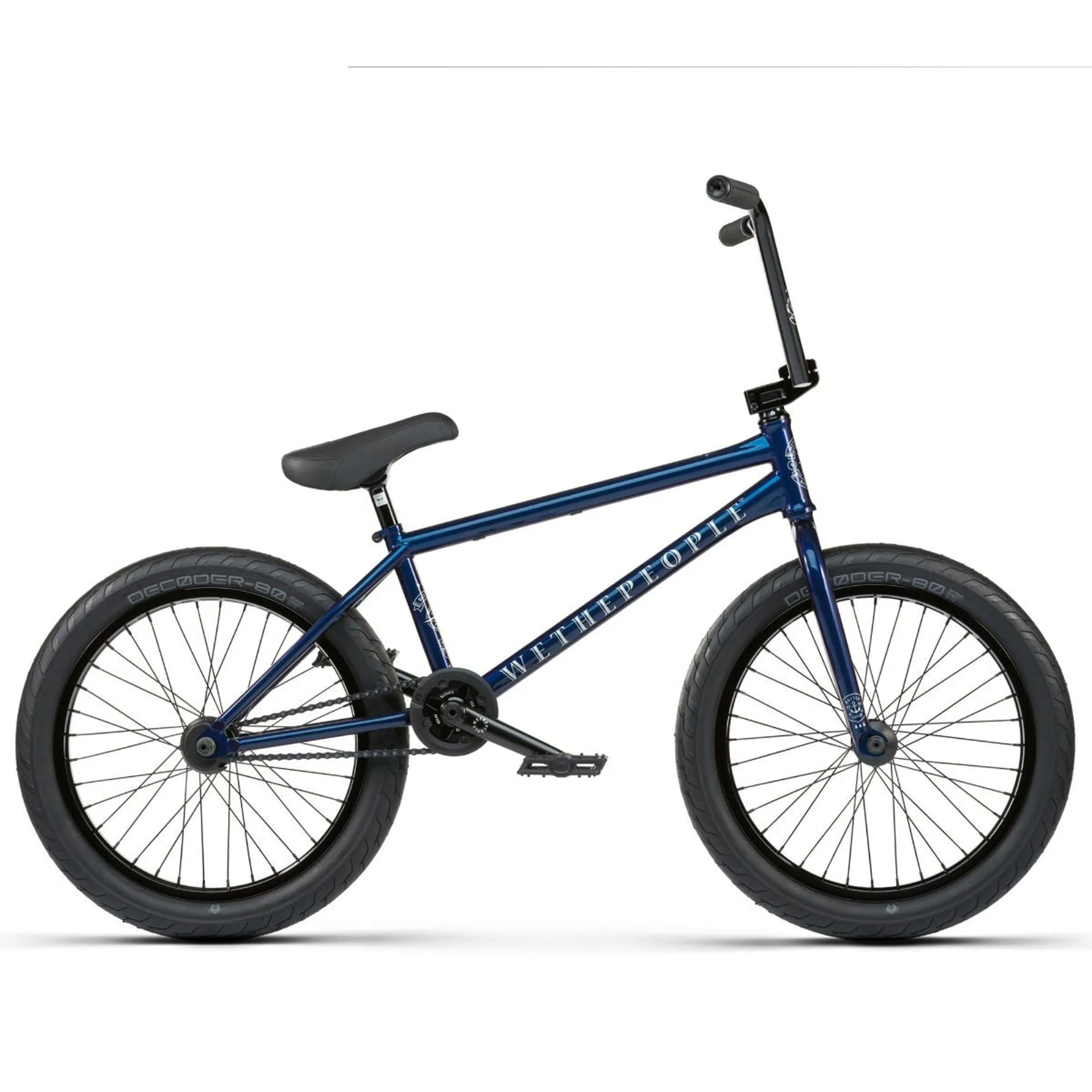

Battleship is a name synonymous with new-school street riding and ultimate strength and durability. Taking one of the most popular technical street frames on the market and adding a full aftermarket Pro parts package, the battleship is the greatest street bike ever made. Now featuring the brand new 15mm offset battleship fork and a full eclat/wethepeople parts package, this is a bike which, any of our team could ride straight out of the box with zero compromise.
A full custom bike in every sense of the word, the battleship carries a full lifetime guarantee on the frame and fork giving you full confidence that you are riding a bike designed to ride at the highest level possible.
Frame wethepeople "battleship" frame, 4130 full cromo, hydro-formed gussets, with removable brake pivots & guides
technical specification:
fork: wethepeople "battleship" fork, post liquid heat-treated butted sanko tubing, 1pc cnc steerer, 15mm offset
bars: ãclat "strangler" bar, 4pc, post liquid heat-treated 4130 cromo, 25.4mm clamping
grips: ãclat "shogun" grips, flangeless, with ãclat "tech-bolt" barends
stem: ãclat "domain" topload stem, cnc alloy, 48mm reach, 25.4mm clamping
headset: ãclat "wave 16" int. Headset, sealed bearing
gyro: -
lever: salt "moto" brake lever, alloy
brakes: eclat âtalonâ alloy u-brake rear
cranks: wethepeople "logic" tubular 3pc crank, 22mm, cromo, 160mm, 48 spline
bb: wethepeople "compact" bb, 22mm, press fit, sealed bearing
pedals: ãclat "centric" pedals, nylon/fiberglass
chain: saltplus "warlock" half-link chain
sprocket: ãclat "elevate" sprocket & nylon guard, 6061-t6 alloy, 25t
driver: 1pc freecoaster driver, 9t, sealed bearing
front hub: wethepeople "helix" hub, fully sealed, 3/8"s female bolts, 36h
rear hub: wethepeople "helix" freecoaster hub, fully sealed, 9t, 14mm axle, 36h
hub guards: wethepeople "helix" hub guards - nylon/fiberglass front (x2), nylon/fiberglass rear (x2)
front rim: ãclat "bondi" rim, 38mm wide, flash welded, double wall, 36h
rear rim: ãclat "bondi" rim, 38mm wide, flash welded, double wall, 36h
seat: ãclat "bios" pivotal seat, fat padded
seat post: wethepeople "team" pivotal seat post, 200mm, 6061-t6 alloy,
seat clamp: wethepeople "logic" seat clamp, 4130 cromo
tyres: ãclat "decoder" tyres, 2.40", 100psi, front & rear
pegs: ãclat "venom" pegs, nylon/fiberglass, 4.8" long, x2
weight: 12.67kg / 27.94lbs
sizes and geometry:
top tube length 20.75"
chain stay length 13" (12.7"-13.2")
head tube angle 75.5â
seat tube angle 71â
bottom bracket height 11.7"
stand over height 9"
bar rise 9.1"
bar width 29.7"
bar back sweep 11.5â
bar upsweep 2.5â
includes lifetime guarantee on the frame & fork
