Norco:

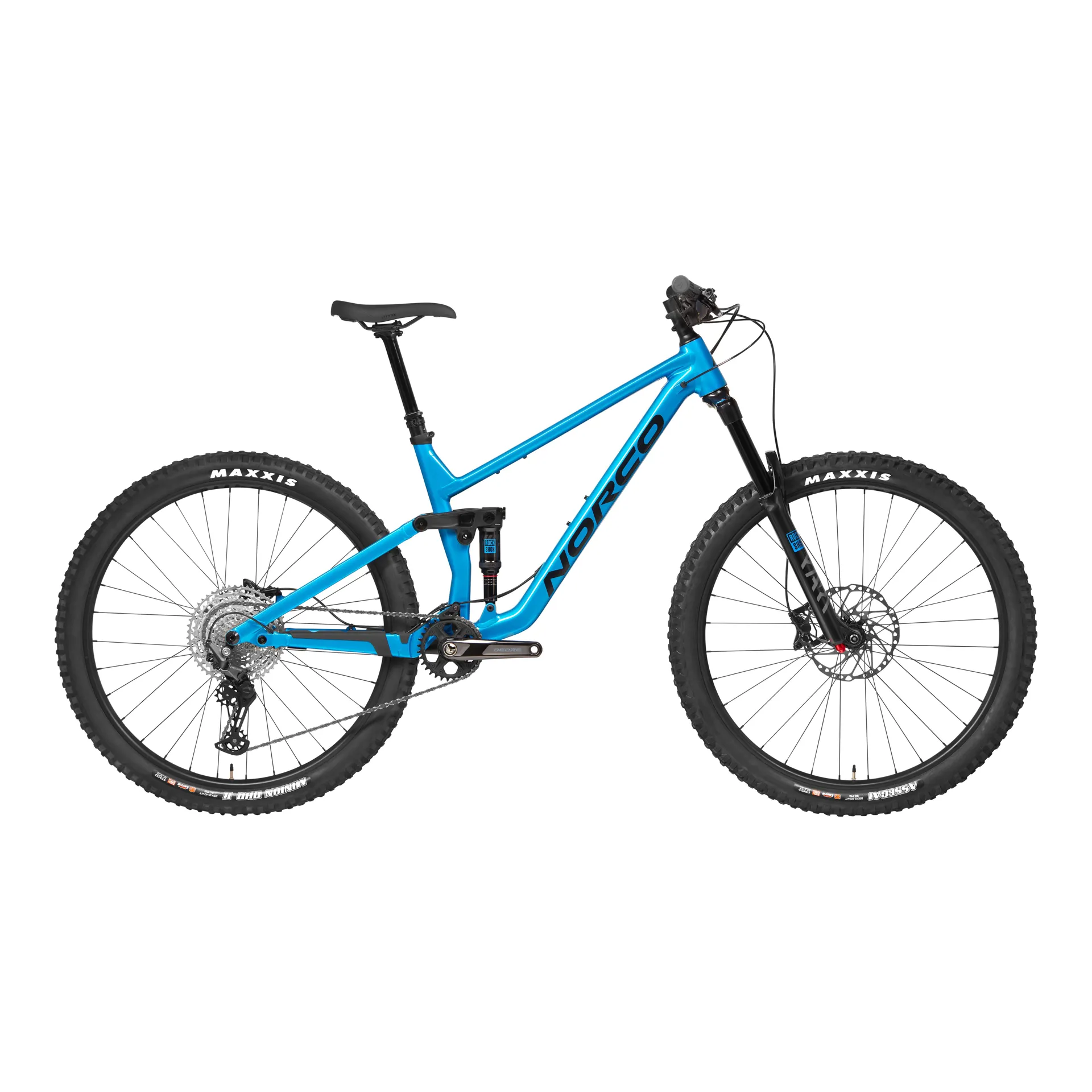

the sight a3 boosts your all-mountain confidence with incredible descending capability, adept, sure-footed climbing, and efficient pedaling.
To make the sight aluminum, we had to re-think how you connect with the trail. With maximum front and rear wheel grip on climbs and descents, sight a3 maintains momentum and cadence in technical situations and allows the suspension to move freely without absorbing drivetrain energy.
Science of send
the sight’s unparalleled descending capability, adept, sure-footed climbing, and efficient pedaling translates all-mountain theory into a category smashing reality.
Dynamic pedaling under rider input in a confident, stable chassis through rough terrain, the sight elevates your all-mountain experience.
Exact suspension tune perfects every ride.
Rockshox and Fox suspension components are mated to our precisely-engineered ride aligned™ kinematics to produce 150mm of travel in back and 160mm up front.
Drop the saddle, send the drop.
Every sight features short seat tubes for maximum standover clearance and size-specific, long-travel dropper posts to get seats completely out of the way in the rough stuff
sweating the little stuff makes the ride better.
Full sized water bottles fit on the full size range of every 27.5" and 29" model. Supportive side-wall 2.4” and 2.5” tires are equipped, but there’s clearance for up 2.6” because details matter. All of them.
Details that make a difference.
Custom frame protection and a new shuttle guard protects each sight from long, rowdy days on the trail and when it’s hanging off the back of your buddy’s pickup. Under-top tube mounts provide easy mounting for some of the most popular aftermarket storage bags or accessories.
Exactly the speed you need when you need it.
Every sight features 4-piston hydraulic disc brakes and 200/180mm rotors to hit the perfect line on every ride and pull you back when the ruckus gets a little out of hand.
Specifications
frameset
frame aluminum all-mountain, 150mm travel, 27.5" and 29" options, ride aligned™
fork rockshox yari rc, motion control, 160mm, 37mm offset (27.5), 44mm offset (29)
rear shock rockshox deluxe select r, 185x52.5mm trunnion
drivetrain
rear shifter shimano deore sl-m6100-r
rear derailleur shimano deore rd-m6100
crankset shimano deore fc-mt6120-1, 32t, 170mm
bottom bracket shimano sealed bearing, bsa threaded
chain tensioner gw 1x flip guide
cassette shimano deore cs-m6100-12, 10-51t, 12 speed
chain shimano deore cn-m6100
brakes
front brake shimano deore br-mt420, 4 piston, metallic pads
front brake rotor shimano rt-64, 203mm
rear brake shimano deore br-mt420, 4 piston, metallic pads
rear brake rotor shimano rt-64, 180mm
brake levers shimano deore br-mt420
components
handlebar butted 6061 alloy, 800mm, 25mm rise
stem alloy, 40mm length, 35mm clamp
seatpost tranzx ys105, adjustable travel, 34.9mm, 150mm (s), 170mm (m), 200mm (l, xl)
headset fsa #57 e sealed bearing, tapered
saddle wtb volt 250 sport
grips sdg thrice lock-on, thin (s, m), thick (l, xl)
seatpost clamp norco design alloy nutted clamp 38.5mm
wheels
front hub shimano hb-mt410 15x110mm boost, center lock
rear hub shimano fh-mt510, 12x148mm boost, micro spline, center lock
rims wtb st i30 tcs 2.0, 32h
front tire maxxis assegai 2.5" 3c maxx terra/exo+/tr, folding
rear tire maxxis minion dhr ii 2.4" wt 3c, maxx terra/exo+/tr, folding
spokes/nipples stainless, black
valves wtb tubeless presta
sealant stan's - 200ml
